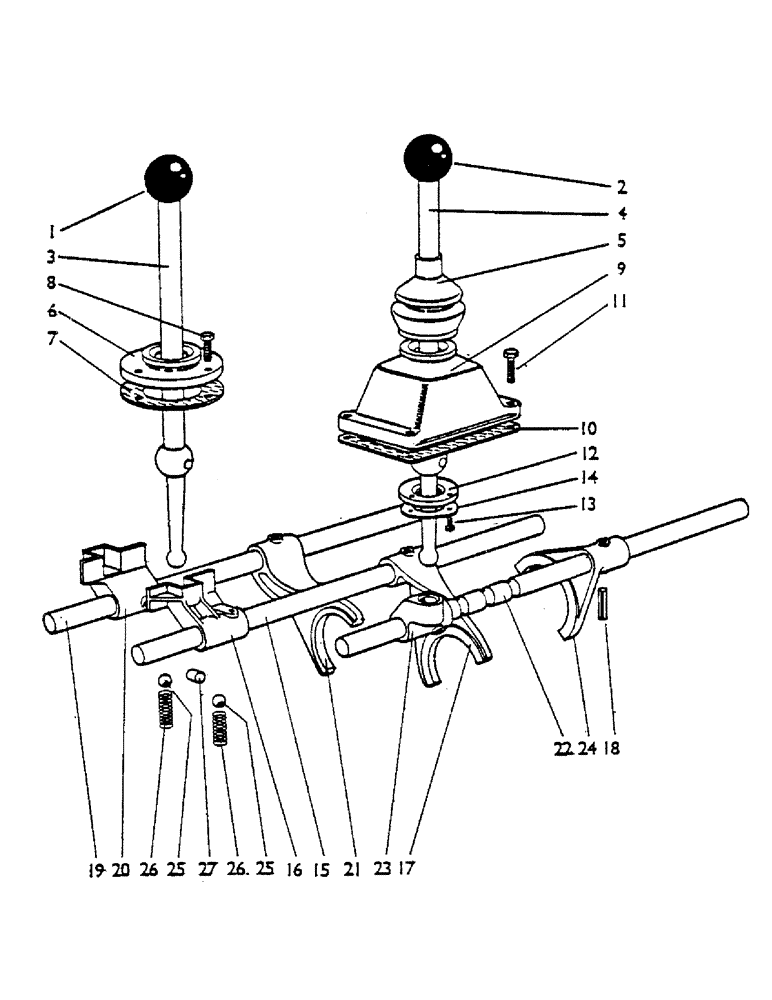

Запчасти Case IH 1200 (034) - SELECTOR MECHANISM Gearbox

1

K920787

KNOB

--gear lever

1шт.

2

K902270

KNOB

--range lever

1шт.

3

K915598

SELECTOR

gear lever (1, 2, 3 and reverse)

1шт.

4

K915601

NO LONGER SERVICED

range lever (high/low)

1шт.

5

K917375

BOOT

dirt excluder

2шт.

6

K915135

SUPPORT

ball housing

1шт.

7

K901835

GASKET

2шт.

8

K602705

SCREW

setscrew, 1/4 UNC x 1 in.

3шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

3шт.

9

K915596

BALL

housing

1шт.

10

K915597

GASKET,0.2mm Thk

1шт.

11

K602706

SCREW

setscrew, 1/4 UNC x 1 1/8 in.

4шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

4шт.

12

K903074

SUPPORT

plate

2шт.

13

K690456

SCREW

setscrew, 3/16 Whit. x 3/8 in.

6шт.

14

K904386

WASHER

tabwasher

2шт.

15

K917731

SELECTOR

rod first and reverse

1шт.

16

K915496

SELECTOR

jaw first and reverse

1шт.

17

K915499

SELECTOR

fork first and reverse

1шт.

18

K15439

PIN

Mills pin, 3/16 x 1 1/8 in. first and reverse

2шт.

18

K15439

PIN

Mills pin, 3/16 x 1 1/8 in. second and third

2шт.

18

K15439

PIN

Mills pin, 3/16 x 1 1/8 in. high and low

2шт.

19

K917732

SELECTOR

rod second and third

1шт.

20

K915497

SELECTOR

jaw second and third

1шт.

21

K915500

selector fork second and third

1шт.

22

K917733

SELECTOR

rod high and low

1шт.

23

K915538

SELECTOR

jaw high and low 6-speed

1шт.

23

K915498

SELECTOR

jaw high and low 12-speed

1шт.

24

K915501

SELECTOR

fork high and low

1шт.

25

K13506

BALL

selector ball

3шт.

26

K13507

SPRING

selector spring

3шт.

27

K30430

LOCKING DEVICE

gear lock

1шт.

K914348

SPRING

baulk spring--high and low 12-speed

1шт.

K602703

SCREW

setscrew, 1/4 UNC x 3/4 in., 12-speed (replaces 602702)

2шт.

K607251

NUT

dome nut, 1/4 UNC 12-speed

2шт.

K915155

instruction plate--This lever must, 12-speed be in neutral before starting engine' 12-speed

1шт.

K624090

RIVET

1/8 x 3/16 in. 12-speed

4шт.
