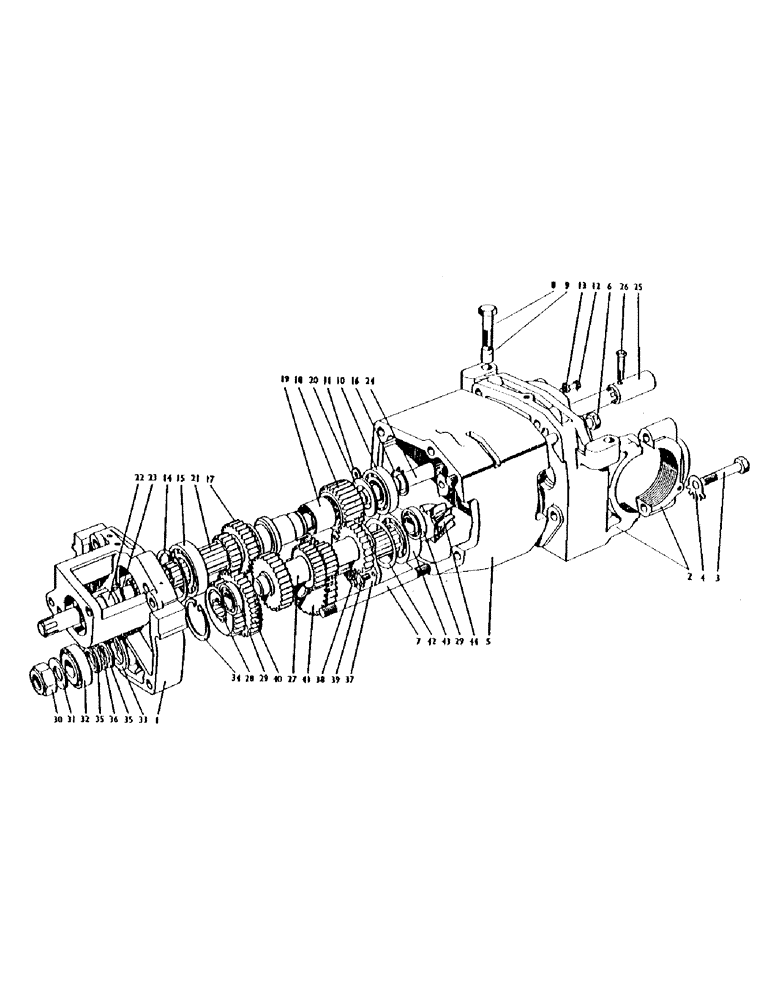

Запчасти Case IH 1200 (032) - GEARBOX Gearbox

K962557

SPARE PART

gearbox, 6-speed (complete with, 708742 onward differential)

1шт.

K962041

SPARE PART

gearbox, 6-speed (complete with, 700001 to 708741 differential)

1шт.

K962558

NO LONGER SERVICED

gearbox, 12-speed (complete with, 708742 onward differential)

1шт.

K962042

SPARE PART

gearbox, 12-speed (complete with, 705494 to 708741 differential)

1шт.

1

K915505

PLATE

end plate--front, 6-speed

1шт.

1

K917726

PLATE

end plate--front, 12-speed

1шт.

2

K962044

PLATE

end plate--rear (complete with bearing caps)

1шт.

3

K601242

BOLT

5/8 UNC x 3 3/4 in. 962044

4шт.

4

K626389

BEARING WASHER

tabwasher (supersedes 11590) 962044

4шт.

5

K915476

BUSHING

spacer--end plates

1шт.

6

K917860

STUD

--end plates, upper

2шт.

7

K915486

STUD

--end plates, lower

2шт.

K607331

NUT

Nyloc nut, 5/8 UNC

4шт.

8

K601306

BOLT

5/8 UNC, special

2шт.

9

K920656

BUSHING

bush--end plate

2шт.

10

K19047

BALL BEARING

drive shaft and gears

1шт.

11

K910447

WASHER

retaining washer--bearing, drive shaft and gears

1шт.

12

K600144

BOLT

1/4 UNC x 1 3/8 in. (replaces 600005), drive shaft and gears

1шт.

13

K33127

WASHER

tabwasher, 1/4 in., drive shaft and gears

1шт.

14

K16296

RING

circlip, 3 3/4 in. ext., drive shaft and gears

1шт.

15

K19129

ROLLER

bearing, drive shaft and gears

1шт.

16

K12922

RING, SNAP

circlip, 1 3/4 in. ext., drive shaft and gears

1шт.

17

K915231

GEAR

range pinion (19/30 teeth), drive shaft and gears

1шт.

18

K962166

GEAR

reverse gear (25 teeth) and bush, drive shaft and gears

1шт.

19

K621376

BUSHING

bearing bush--reverse gear, drive shaft and gears

1шт.

20

K908940

WASHER

thrust washer, drive shaft and gears

1шт.

21

K926482

COLLAR

driveshaft--6-speed 708742 onward, drive shaft and gears

1шт.

21

K917920

COLLAR

driveshaft--6-speed 700001 to 708741, drive shaft and gears

1шт.

21

K917919

DRIVE SHAFT

driveshaft--12-speed, drive shaft and gears

1шт.

22

K24774

BUSHING

bush, drive shaft and gears

1шт.

23

K12922

RING, SNAP

circlip, 1 3/4 in. ext., drive shaft and gears

1шт.

24

K915583

PTO

live PTO cardan shaft, drive shaft and gears

1шт.

25

K89181

COUPLING, BREAK AWAY

coupling sleeve, drive shaft and gears

1шт.

26

K600009

BOLT

1/4 UNC x 1 7/8 in. (replaces 600141), drive shaft and gears

1шт.

K607440

NUT

locknut, 1/4 UNC (replaces 607100)

1шт.

27

K915238

SHAFT

layshaft and integral gears, layshaft

1шт.

28

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

Layshaft .002" Thk

1шт.

28

K914703

SHIM,.003" Thk

Layshaft .003" Thk

1шт.

28

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

Layshaft .007" Thk

1шт.

28

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

Layshaft .010" Thk

1шт.

29

K620076

BEARING, ROLLER

taper roller bearing, layshaft

2шт.

30

K84912

NUT

Nyloc nut, 1 1/8 BSF, left-hand, bevel pinion gears

1шт.

31

K14687

WASHER

1 1/8 in., bevel pinion gears

1шт.

32

K620061

BEARING, ROLLER

taper roller bearing, bevel pinion gears

1шт.

33

K627253

BUSHING

spacer, bevel pinion gears

1шт.

34

K17023

CIRCLIP

3 in. int. dia., bevel pinion gears

1шт.

35

K917844

BUSHING

distance piece, bevel pinion gears

2шт.

37

K923729

COVER

retaining plate (supersedes 910453), bevel pinion gears

1шт.

38

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in., bevel pinion gears

6шт.

39

K910458

WASHER

tabwasher, bevel pinion gears

3шт.

40

K915229

GEAR

driven gear--high and medium (32/40 teeth), bevel pinion gears

1шт.

41

K915395

GEAR

driven gear--low (47 teeth), bevel pinion gears

1шт.

43

K620062

BEARING, ROLLER

taper roller bearing, bevel pinion gears

1шт.

44

K962043

GEAR

bevel pinion and spiral gear (7/43 teeth), bevel pinion gears

1шт.
