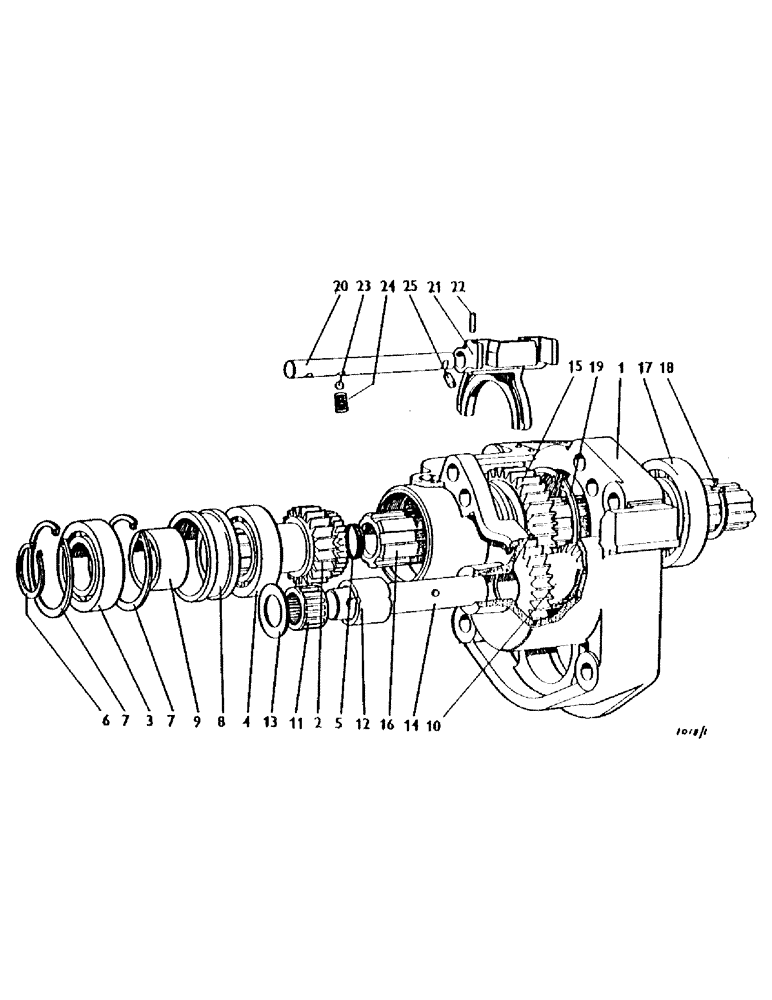

Запчасти Case IH 1200 (030) - 12-SPEED GEARBOX, OPTIONAL EQUIPMENT Gearbox

1

K917726

PLATE

end plate

1шт.

2

K926345

GEAR

driving gear 708742 onward

1шт.

2

K917727

GEAR

driving gear, Serial Range: 705494-708741

1шт.

3

K19047

BALL BEARING

1шт.

4

K12275

BEARING, ROLLER, CYL

roller bearing

1шт.

5

K623634

SEAL

ing ring, 1 1/8 in. int.

1шт.

6

K12922

RING, SNAP

circlip, 1 3/4 in. ext.

1шт.

7

K11481

RING, SNAP

circlip, 85 mm int.

2шт.

8

K627302

BUSHING

spacer--bearings

1шт.

9

K627238

BUSHING

spacer--driving gear

1шт.

10

K924493

SHAFT

layshaft (with integral gears) 706707 onward

1шт.

10

K923796

NO LONGER SERVICED

layshaft (with integral gears), Serial Range: 705494-706706

1шт.

10

K923796

NO LONGER SERVICED

layshaft (with integral gears), Serial Range: 704738-705493

1шт.

10

K915233

NO LONGER SERVICED

layshaft (with integral gears), Serial Range: 700001-704737

1шт.

11

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

needle roller bearing 706707 onward

2шт.

11

K690477

SPARE PART

needle roller bearing, Serial Range: 705494-706706

2шт.

11

K690477

SPARE PART

needle roller bearing, Serial Range: 704738-705493

2шт.

11

K690477

SPARE PART

needle roller bearing, Serial Range: 700001-704737

2шт.

12

K924495

BUSHING

distance piece 706707 onward

1шт.

12

K627180

STRIP

distance piece, Serial Range: 705494-706706

1шт.

K626862

WASHER

special washer, Serial Range: 705494-706706

2шт.

12

K627184

BRACE

distance piece, Serial Range: 704738-705493

1шт.

13

K626714

WASHER

thrust washer 706707 onward

2шт.

13

K626862

WASHER

thrust washer, Serial Range: 705494-706706

2шт.

K24657

CIRCLIP

2 in. int., Serial Range: 705494-706706

2шт.

13

K626862

WASHER

thrust washer, Serial Range: 704738-705493

2шт.

K24657

CIRCLIP

2 in. int., Serial Range: 704738-705493

2шт.

13

K626842

NO LONGER SERVICED

thrust washer, Serial Range: 700001-704737

2шт.

14

K917918

SHAFT

spindle--layshaft

1шт.

K606261

SCREW

grubscrew, 7/16 UNC x 7/16 in.--spindle

1шт.

K623895

PIN

spring pin, 5/16 x 2 in.

1шт.

15

K915230

GEAR

driven gear

1шт.

16

K917919

DRIVE SHAFT

driveshaft

1шт.

17

K12311

BEARING, ROLLER, CYL

roller bearing

1шт.

18

K12300

RING, SNAP

circlip, 2 in. ext.

1шт.

19

K12236

RING, SNAP

circlip, 4 in. int.

1шт.

20

K917734

SELECTOR

rod

1шт.

21

K915491

SELECTOR

fork

1шт.

22

K15439

PIN

Mills pin, 3/16 x 1 1/8 in.

1шт.

23

K13506

BALL

steel ball

1шт.

24

K13507

SPRING

selector spring

1шт.

25

K915492

DOWEL

gear lock

1шт.
