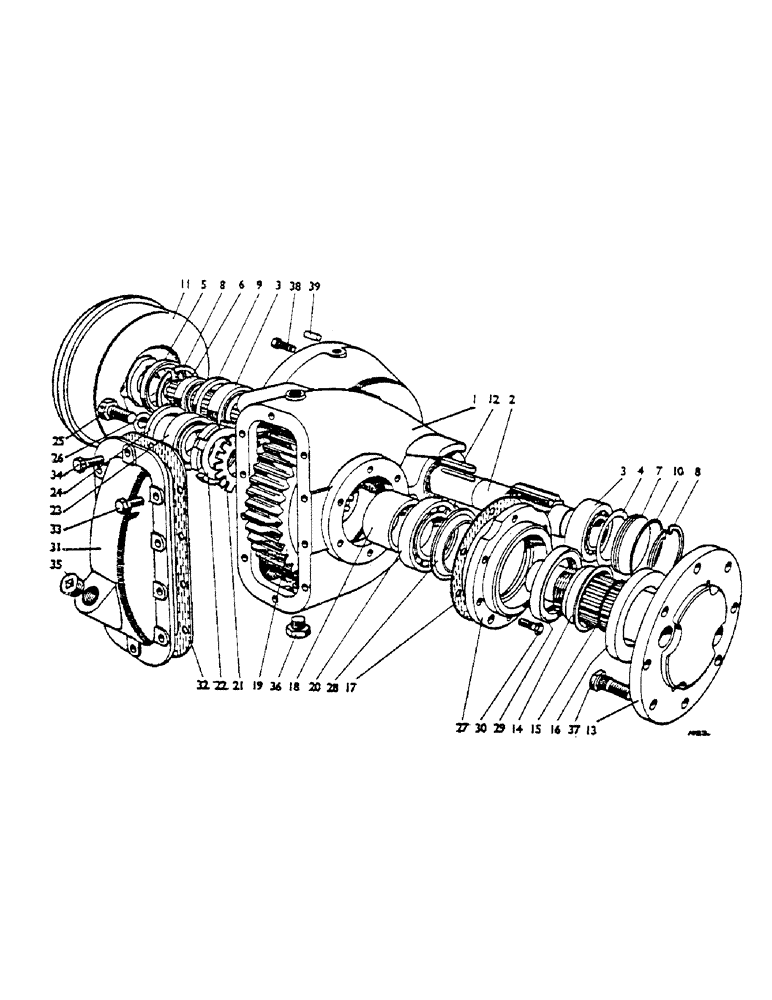

Запчасти Case IH 1200 (038) - FINAL DRIVE Final Drive Reductions

K926766

X

final drive unit, right-hand, heavy duty (complete), 9/50 ratio

1шт.

K926767

SPARE PART

final drive unit, left-hand, heavy duty (complete), 9/50 ratio

1шт.

K929716

final drive unit, right-hand (complete), 10/49 ratio

1шт.

K929717

final drive unit, left-hand (complete), 10/49 ratio

1шт.

K921290

NO LONGER SERVICED

final drive unit, right-hand, 703005 onward (complete), 9/50 ratio

1шт.

K921291

NO LONGER SERVICED

final drive unit, left-hand, 703005 onward (complete), 9/50 ratio

1шт.

K918680

X

final drive unit, right-hand, 700001 to 703004 (complete), 9/50 ratio

1шт.

K918681

final drive unit, left-hand, 700001 to 703004 (complete), 9/50 ratio

1шт.

K921292

NO LONGER SERVICED

final drive unit, right-hand, 703005 onward (complete), 11/49 ratio

1шт.

K921293

NO LONGER SERVICED

final drive unit, left-hand, 703005 onward (complete), 11/49 ratio

1шт.

K919019

final drive unit, right-hand, 700001 to 703004 (complete), 11/49 ratio

1шт.

K919020

NO LONGER SERVICED

final drive unit, left-hand, 700001 to 703004 (complete), 11/49 ratio

1шт.

1

K920445

NO LONGER SERVICED

case (standard) (supersedes 910388)

2шт.

1

K926291

SPARE PART

case (heavy duty)

2шт.

2

K920435

SHAFT

pinion shaft (9 teeth), 9/50 ratio 703005 onward

2шт.

2

K917994

pinion shaft (9 teeth), 9/50 ratio, Serial Range: 700001-703004

2шт.

2

K929253

SHAFT

pinion shaft (10 teeth), 10/49 ratio

2шт.

2

K921298

SHAFT

pinion shaft (11 teeth), 11/49, 703005 onward ratio

2шт.

2

K918698

GEAR

pinion shaft (11 teeth), 11/49, 700001 to 703004 ratio

2шт.

3

K19186

BEARING, ROLLER

taper roller bearing

4шт.

4

907514

HANDLE

SHIM .003

1шт.

4

907515

SCREW

SHIM .010

1шт.

5

K623455

SEAL

oil seal, 2 1/2 x 3 1/4 x 3/8 in. (Replaces 623409)

2шт.

6

K910390

COLLAR

2шт.

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' ring, 1 3/4 in. int. dia.

2шт.

K628075

PLUG

plastic plug, 1/2 in. (replaces 627935)

2шт.

K627936

NO LONGER SERVICED

plastic plug, 5/8 in.--stabiliser holes

12шт.

7

K907504

COVER

end cover

2шт.

8

K13042

RING, SNAP

circlip, 3 1/4 in. ext.

4шт.

9

K904256

SPACER

distance piece

2шт.

10

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' ring, 3 in. int. dia.

2шт.

11

K921829

BRAKE DRUM

703005 onward

2шт.

11

K917989

BRAKE

drum, Serial Range: 700001-703004

2шт.

12

K622324

KEY

4шт.

13

K962919

NO LONGER SERVICED

final driveshaft (with ring, replaces 916494 nut)--eight-bolt wheel fixing

2шт.

14

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

2шт.

15

K623595

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

'O' ring, 2 7/8 in. int. dia.

2шт.

16

K910397

SEAL

cover--oil seal

2шт.

17

K910404

GASKET

2шт.

18

K910394

SLEEVE

2шт.

19

K910395

WHEEL

spur wheel (50 teeth), 9/50 ratio

2шт.

19

K929252

WHEEL

spur wheel (49 teeth), 10/49 ratio

2шт.

19

K918697

WHEEL

spur wheel (49 teeth) 11/49 ratio

2шт.

20

K19185

TAPERED BEARING

taper roller bearing

2шт.

21

K85355

LOCK WASHER

tabwasher

2шт.

22

K85359

LOCK NUT

ring nut

2шт.

23

K19186

BEARING, ROLLER

taper roller bearing

2шт.

24

K910396

PLATE

thrust plate

2шт.

25

K611264

SCREW

adjusting screw

2шт.

27

K910402

HOUSING

oil seal housing

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

28

K916499

BAFFLE

plate

2шт.

29

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

oil seal

2шт.

30

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 UNC x 1 1/2 in., Serial Range: housing-case

12шт.

K19483

SPRING WASHER

spring washer, 7/16 in., Serial Range: housing-case

12шт.

31

K901556

COVER

2шт.

32

K923221

GASKET,0.51mm Thk

(supersedes 901557)

2шт.

33

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

setscrew, 3/8 UNC x 1 1/8 in.

18шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

18шт.

34

K600502

BOLT

breather bolt

2шт.

K626521

SEALING WASHER

ing washer, 3/8 in.

4шт.

35

K623825

PLUG

taper plug, 1 in. BSP (replaces 12362)

2шт.

36

K626793

WASHER

flanged plug, 1/2 BSP (replaces 24850)

2шт.

K626769

WASHER

sealing washer

2шт.

37

K611266

BOLT

5/8 UNF x 2 1/8 in., special wheel centre fixing

16шт.

K617171

WHEEL NUT

5/8 UNF wheel centre fixing

16шт.

K611271

BOLT

5/8 UNF x 2 1/2 in.,, replaces 611267 special--power-adjusted centre fixing

16шт.

K617170

NUT

5/8 UNF

16шт.

K608411

STUD

1/2 UNC x 4 3/16 in. case to, 703005 onward rear axle

20шт.

280431

NUT,1/2"-13, G5

Case to rear axle, 703005 onward (Replaces 607004) 1/2"-13, G5

20шт.

K626345

LOCK WASHER

spring washer, 1 1/4 in. case to, 703005 onward rear axle (replaces 19484)

20шт.

K11482

PIN

dowel, 7/16 x 1/4 in. case to rear, 703005 onward axle

8шт.

38

K600881

setscrew, 1/2 UNC x 1 3/4 in. case, 700001 to 703004 to rear axle

20шт.

K19484

LOCK WASHER

spring washer, 1/2 in. case to rear, 700001 to 703004 axle

20шт.

39

K11482

PIN

dowel, 7/16 x 1 1/4 in. case to, 700001 to 703004 rear axle

4шт.
