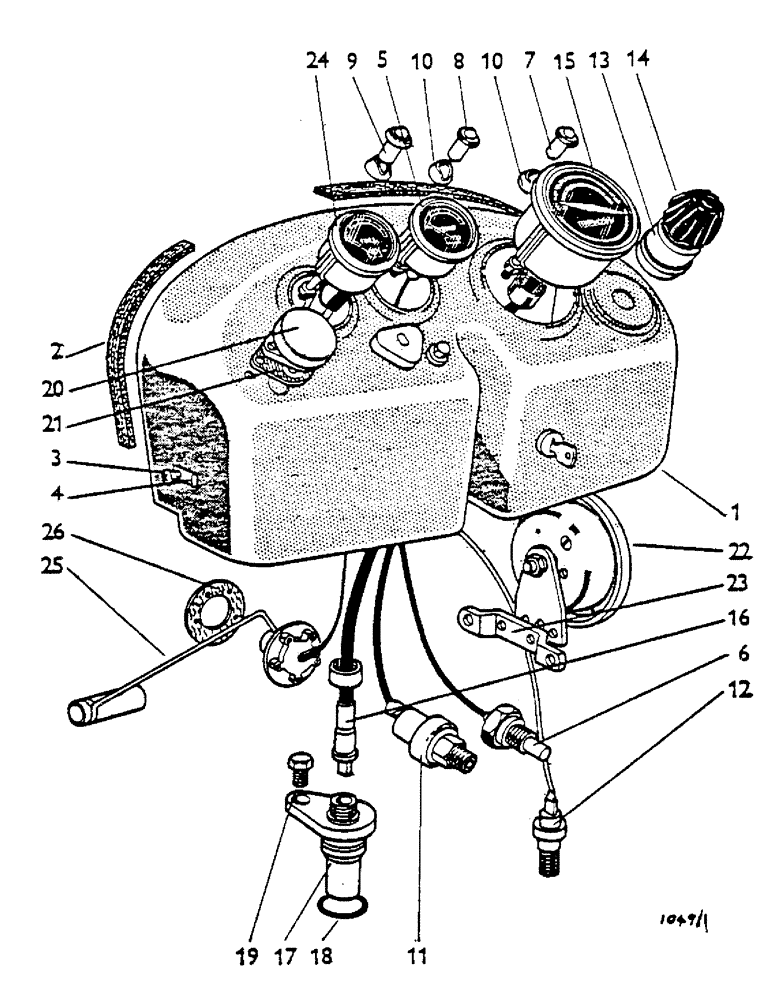

Запчасти Case IH 1200 (096) - INSTRUMENTS AND PANEL Engine Controls & Instruments

1

K962607

PANEL

instrument panel 709586 onward

1шт.

1

K962154

PANEL ASSY.

instrument panel, Serial Range: 700001-709585

1шт.

2

K913391

STRIP

seating strip

3шт.

3

K624714

SCREW

2 BA x 3/8 in.

4шт.

K626572

WASHER

shakeproof washer, 3/16 in.

3шт.

K11519

WASHER

shakeproof washer, 3/16 in.

1шт.

4

K624581

NUT

captive nut, 2 BA

4шт.

5

K921148

ELECTRICAL GAUGE

temperature gauge (part of U1005--see Figure 116), 703305 onward

1шт.

6

K921149

TEMPERATURE SENDER

sender 703305 onward

1шт.

K910618

ELECTRICAL GAUGE

temperature gauge (part of U924--see Figure 120), Serial Range: 700001-703304

1шт.

K907985

SPARE PART

sender, Serial Range: 700001-703304

1шт.

K903487

blanking plate--temperature and fuel gauge apertures

2шт.

7

K917370

PROTECTIVE COVER

warning lamp--dynamo charge

1шт.

8

K917371

SIGHTGLASS

warning lamp--oil pressure

1шт.

9

K921367

SIGHTGLASS

warning lamp--oil filter

1шт.

bulb, 12 volt, 2 watt, MBC

3шт.

10

K919304

GUARD

hood

3шт.

K919289

NO LONGER SERVICED

lead--oil warning, Serial Range: switch-connector

1шт.

K621600

CLIP

lead to tank bracket

2шт.

K614924

SCREW

No. 10 UNF x 1/2 in. lead to tank bracket

2шт.

K617049

NUT

No. 10 UNF lead to tank bracket

2шт.

K19488

SPRING WASHER

spring washer lead to tank bracket

2шт.

11

K903851

PRESSURE SWITCH

switch--oil warning lamp

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

fibre washer, 3/8 in.

1шт.

K915148

NO LONGER SERVICED

cover--oil switch

1шт.

12

K921317

SENDER UNIT

switch--oil filter warning lamp

1шт.

K923874

COVER

--switch

1шт.

13

K912388

IGNITION SWITCH

lighting switch (Lucas 54033351) five-position

1шт.

K901982

PLATE

escutcheon plate 912388

1шт.

K902464

SWITCH

lighting switch (Lucas 54033370) four-position

1шт.

14

K901981

KNOB

912388 and 902464

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

'O' ring, 1/4 in. int. dia.

1шт.

15

K924339

SPEEDOMETER

engine speed indicator

1шт.

16

K901132

CABLE

(inner and outer)

1шт.

K904133

NO LONGER SERVICED

inner cable, 50 in., AC Delco (use with black outer cable)

1шт.

K962916

CABLE

inner cable, 50 5/8 in., Smith's (use with grey outer cable)

1шт.

K10518

BUCKLE

clip

1шт.

17

K910172

BRACKET

1шт.

18

K16351

O-RING,3.53mm Thk x 24.99mm ID

'O' ring, 1 in. int. dia.

1шт.

19

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

setscrew, 5/16 UNC x 7/8 in.

1шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

1шт.

20

K928180

SWITCH

horn push (replaces 19911) U1020 (918312) (electric horn)

1шт.

21

K928150

BOOT

rubber cover horn push to, U1020 (918312) (electric horn) instrument panel (replaces 908047

1шт.

K928149

WASHER

3/4 in. horn push to, U1020 (918312) (electric horn) instrument panel (replaces 624718)

1шт.

K928148

SPRING

washer, 3/4 in. horn push to, U1020 (918312) (electric horn) instrument panel (replaces 19487)

1шт.

K928147

nut, 3/4 UNF horn push to, U1020 (918312) (electric horn) instrument panel (replaces 19419)

1шт.

K921128

ELECTRICAL WIRE

lead--horn push to four-way, U1020 (918312) (electric horn) connector (replaces 919292)

1шт.

K921199

ELECTRICAL WIRE

lead--horn push to connector U1020 (918312) (electric horn)

1шт.

K921176

NO LONGER SERVICED

lead--connector to horn U1020 (918312) (electric horn)

1шт.

22

K907861

NO LONGER SERVICED

horn and bracket U1020 (918312) (electric horn)

1шт.

23

K908033

CARRIER

plate--horn U1020 (918312) (electric horn)

1шт.

K602733

SCREW

setscrew, 1/4 UNC x 5/8 in. U1020 (918312) (electric horn)

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in. U1020 (918312) (electric horn)

2шт.

K607043

NUT

1/4 UNC U1020 (918312) (electric horn)

2шт.

K608214

STUD

3/8 UNC x 2 in.--inlet, U1020 (918312) (electric horn) manifold (replaces 608203)

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. U1020 (918312) (electric horn)

2шт.

280136

NUT,3/8"-16, G8

U1020 (918312) (electric horn) 3/8"-16, G8

2шт.

K908902

WIRE

lead--horn to earth U1020 (918312) (electric horn)

1шт.

24

K921147

ELECTRICAL GAUGE

fuel gauge (see Figure 116) 703305 onward

1шт.

K917374

SPARE PART

fuel gauge (see Figure 120), Serial Range: 700001-703304

1шт.

25

K916755

FLOAT

tank unit--fuel gauge

1шт.

26

K916485

GASKET

, Serial Range: gasket--unit-tank

1шт.

K617080

NUT

No. 10 UNF

5шт.

K626340

RING

spring washer, 3/16 in.

5шт.

K627711

PLUG

17/22 in.

1шт.
