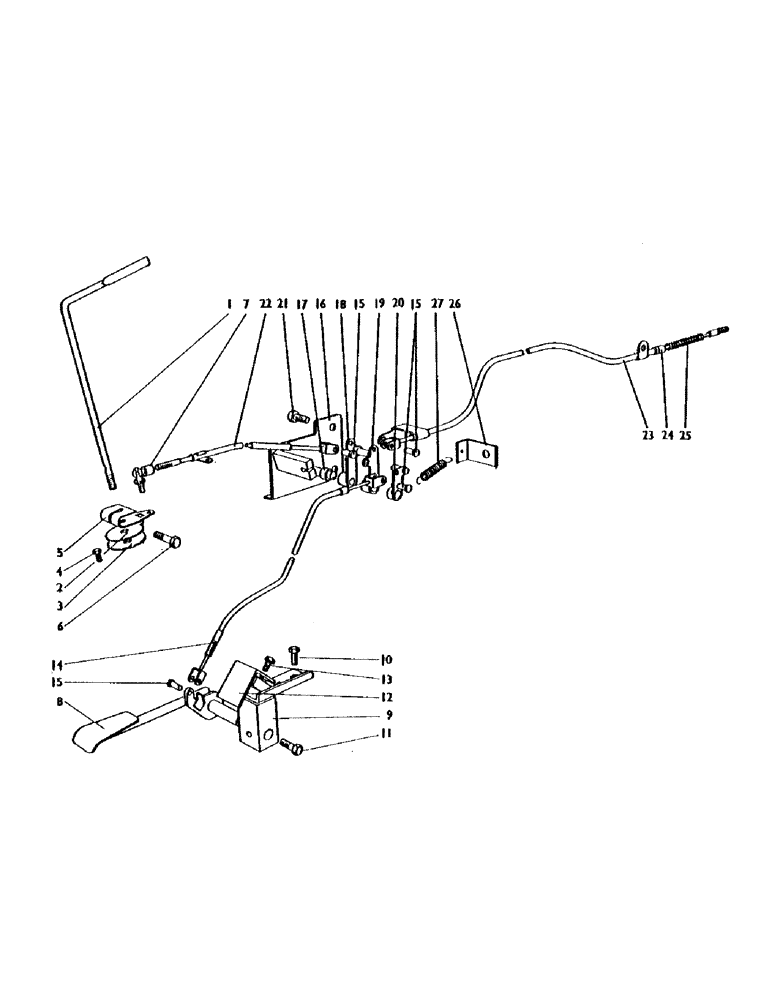

Запчасти Case IH 1200 (074) - FOOT THROTTLE, U961, OPTIONAL EQUIPMENT Engine Controls & Instruments

1

K919002

LEVER

hand lever

1шт.

2

K919004

DRIVE

plate

1шт.

3

K917612

DISC

friction disc

1шт.

4

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

setscrew, 1/4 UNC throttle control stop

2шт.

K607043

NUT

1/4 UNC throttle control stop

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in. throttle control stop

2шт.

K19470

WASHER

1/4 in. throttle control stop

4шт.

K626741

WASHER

Believilie washer

1шт.

K19472

WASHER

3/8 in.

1шт.

232-1416

LOCK NUT,3/8"-16, GC

Nyloc nut, 3/8 UNC

1шт.

5

K919003

LEVER

1шт.

6

K600005

BOLT

1/4 UNC x 1 3/8 in.

1шт.

K607000

NUT

1/4 UNC

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

1шт.

7

K621900

UNIVERSAL JOINT

ball joint

2шт.

K19401

NUT

1/4 BSF

2шт.

K19480

SPRING WASHER

1/4 in.

2шт.

8

K920002

PEDAL

accelerator pedal

1шт.

9

K920001

bracket--pedal support

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

10

K602803

BOLT

setscrew, 5/16 UNC x 3/4 in. pedal, Serial Range: bracket-frame

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in. pedal, Serial Range: bracket-frame

2шт.

11

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. pedal shaft

1шт.

K19476

WASHER

3/4 in. pedal shaft

1шт.

K88751

WASHER

3/8 in., special pedal shaft

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. pedal shaft

1шт.

12

K920834

dirt shield

1шт.

13

K612702

SCREW

setscrew, 1/4 UNF x 5/8 in.

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

1шт.

14

K923209

CABLE

(inner and outer) (supersedes 920003)

1шт.

15

K920004

PIN

--special

4шт.

K19520

PIN

split pin, 1/16 x 3/8 in.

3шт.

16

K920005

mounting plate

1шт.

K627003

spacer 709085 onward

1шт.

K925274

LEVER

and pin 709085 onward

1шт.

K925277

LEVER

--long 709085 onward

1шт.

K925278

LEVER

--short 709085 onward

1шт.

17

K920006

SPACER

, Serial Range: 700001-709084

1шт.

18

K920007

NO LONGER SERVICED

lever and pin, Serial Range: 700001-709084

1шт.

19

K920008

NO LONGER SERVICED

lever--long, Serial Range: 700001-709084

1шт.

20

K920009

NO LONGER SERVICED

lever--short, Serial Range: 700001-709084

1шт.

K19472

WASHER

3/8 in.

1шт.

K19522

PIN

split pin, 1/16 x 5/8 in.

1шт.

21

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. mounting plate to left-hand tank support bracket

1шт.

280136

NUT,3/8"-16, G8

Mounting plate to LH tank support bracket 3/8"-16, G8

1шт.

K19482

SPRING WASHER

spring washer, 3/8 in. mounting plate to left-hand tank support bracket

1шт.

K923283

CABLE

rear cable and tube 704286 onward

1шт.

22

K921487

CABLE

rear cable and tube (supersedes, 700001 to 704285 920010)

1шт.

23

K921486

CABLE

front cable and tube (supersedes 920011)

1шт.

24

K917789

BUSHING

spacer

1шт.

25

K24780

SPRING

1шт.

26

K920831

BRACKET

anchor--spring

1шт.

27

K624920

NO LONGER SERVICED

spring

1шт.
