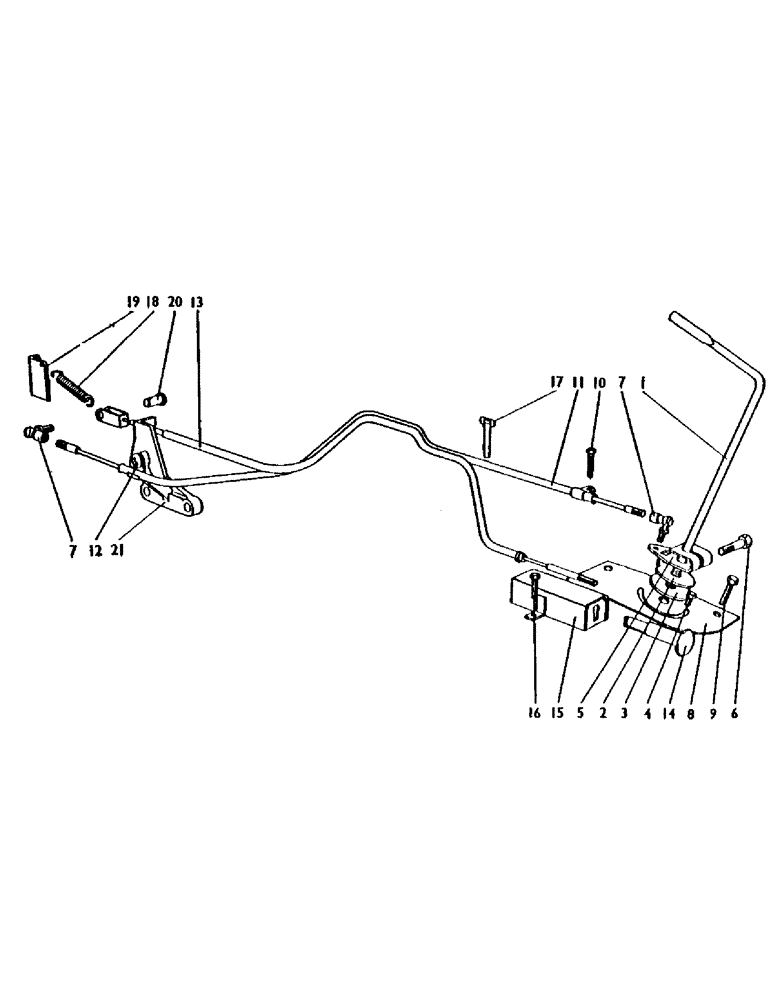

Запчасти Case IH 1200 (072) - HAND THROTTLE AND STOP, CONTROL Engine Controls & Instruments

1

K919002

LEVER

hand lever

1шт.

2

K919004

DRIVE

plate

1шт.

3

K917612

DISC

friction disc

1шт.

4

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

setscrew, 1/4 UNC throttle control stop

2шт.

K607043

NUT

1/4 UNC throttle control stop

2шт.

K626341

SPRING WASHER

spring washer, 1/4 in. throttle control stop

2шт.

K19470

WASHER

1/4 in. throttle control stop

4шт.

K626741

WASHER

Belleville washer

1шт.

K19472

WASHER

3/8 in.

1шт.

232-1416

LOCK NUT,3/8"-16, GC

Nyloc nut, 3/8 UNC

1шт.

5

K919003

LEVER

1шт.

6

K600144

BOLT

1/4 UNC x 1 3/8 in. (replaces 600005)

1шт.

K607000

NUT

1/4 UNC

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in.

1шт.

7

K621900

UNIVERSAL JOINT

ball joint

2шт.

K19401

NUT

1/4 BSF

2шт.

K19480

SPRING WASHER

1/4 in.

2шт.

8

K919001

SUPPORT

bracket

1шт.

9

K602703

SCREW

setscrew, 1/4 UNC x 3/4 in. support, Serial Range: bracket-steering-box

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in. support, Serial Range: bracket-steering-box

1шт.

10

K613984

SCREW

setscrew, No. 10 UNF x 1/2 in. support, Serial Range: bracket-steering-box

2шт.

K19488

SPRING WASHER

spring washer, 3/16 in. support, Serial Range: bracket-steering-box

2шт.

K923253

CABLE

--inner and outer (throttle, 704286 onward control)

1шт.

11

K916719

NO LONGER SERVICED

cable--inner and outer (throttle, 700001 to 704285 control)

1шт.

12

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in.

1шт.

K613984

SCREW

setscrew, 10 UNF

1шт.

K626340

RING

spring washer, 3/16 in.

2шт.

K19496

WASHER

3/16 in.

2шт.

13

K916722

CABLE

--inner and outer (stop control)

1шт.

14

K916844

KNOB

1шт.

K12939

WASHER

3/16 in., special

1шт.

K617080

NUT

No. 10 UNF (replaces 617049)

3шт.

15

K918969

BRACKET

--engine stop

1шт.

16

K613984

SCREW

setscrew, No. 10 UNF x 1/2 in., Serial Range: bracket-steering-box

2шт.

K19488

SPRING WASHER

spring washer, 3/16 in., Serial Range: bracket-steering-box

2шт.

17

K621672

HOSE CLAMP

buckle clip (replaces 621637)

4шт.

18

K624920

NO LONGER SERVICED

return spring

1шт.

19

K916963

ANCHOR

--spring

1шт.

20

K913180

PIN

1/4 x 5/8 in.

1шт.

K11934

PIN

split pin, 1/16 x 1/2 in.

1шт.

21

K916819

bracket--throttle and stop cables

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC--bracket to injection pump

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.
