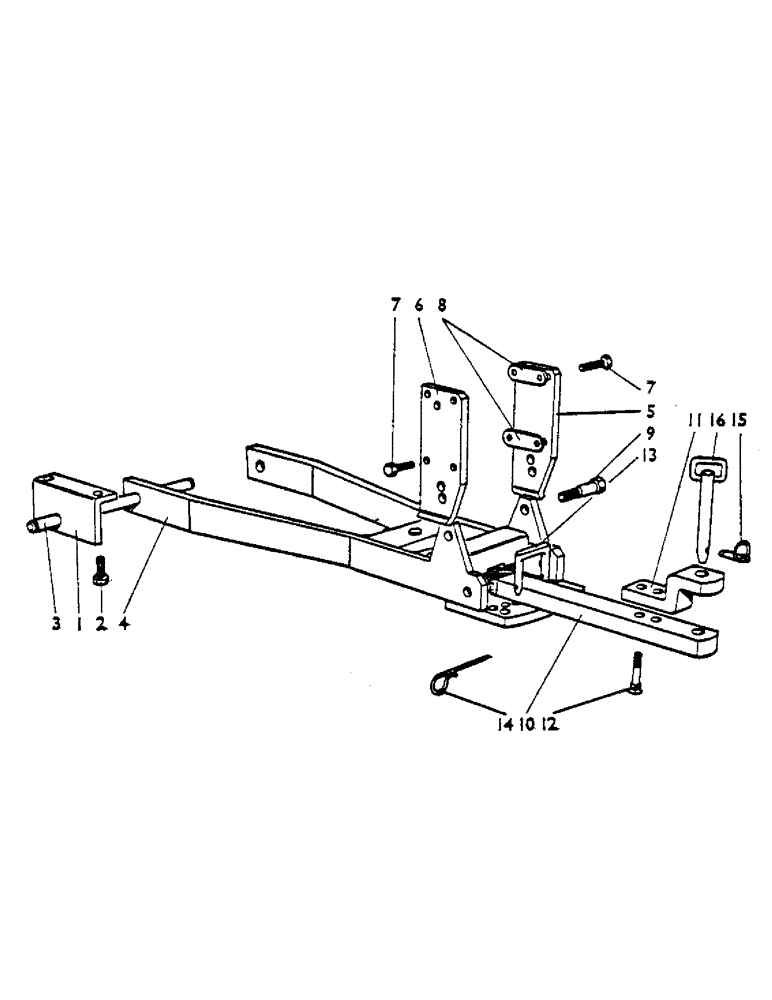

Запчасти Case IH 1200 (070) - UNIVERSAL DRAWBAR Drawbars & Hitches

1

K916444

BRACKET

hinge bracket, right-hand

1шт.

1

K916445

NO LONGER SERVICED

hinge bracket, left-hand

1шт.

2

K603307

SCREW

setscrew, 5/8 UNC x 1 5/8 in., replaces 603308, Serial Range: brackets-frame

4шт.

K626411

WASHER

tabwasher, 5/8 in. brackets to, replaces 19485 frame

4шт.

3

K916551

HINGE

bar

1шт.

K11128

CIRCLIP

1 in. ext.

2шт.

K923779

DRAWBAR

support 706230 onward

1шт.

4

K919098

SUPPORT

drawbar support, Serial Range: 700001-706229

1шт.

5

K916519

HITCH ASSY

hitch plate, right-hand

1шт.

6

K917075

PLATE

hitch plate, left-hand

1шт.

7

K603308

BOLT (SPREADER)

bolt, 5/8 UNC x 1 3/4 in. hitch plates to PTO case

8шт.

K19485

WASHER

spring washer, 5/8 in. hitch plates to PTO case

8шт.

9

K908290

STEP BOLT

3/4 UNC, special

2шт.

280954

NUT,3/4"-10, G5

3/4 UNC

2шт.

K19486

WASHER, LOCK

spring washer, 3/4 in.

2шт.

10

K916515

DRAWBAR, SWINGING

drawbar

1шт.

11

K916516

CLEVIS

bracket

1шт.

12

K691431

BOLT

plough bolt, 5/8 UNC x 3 1/4 in.

2шт.

K607306

NUT

Nyloc nut, 5/8 UNC

2шт.

13

K916550

PIN

stop pin

1шт.

14

K916549

SPRING

retaining pin

1шт.

15

K920359

PIN

linch pin and ring

1шт.

16

K916566

PIN

hitch pin

1шт.
