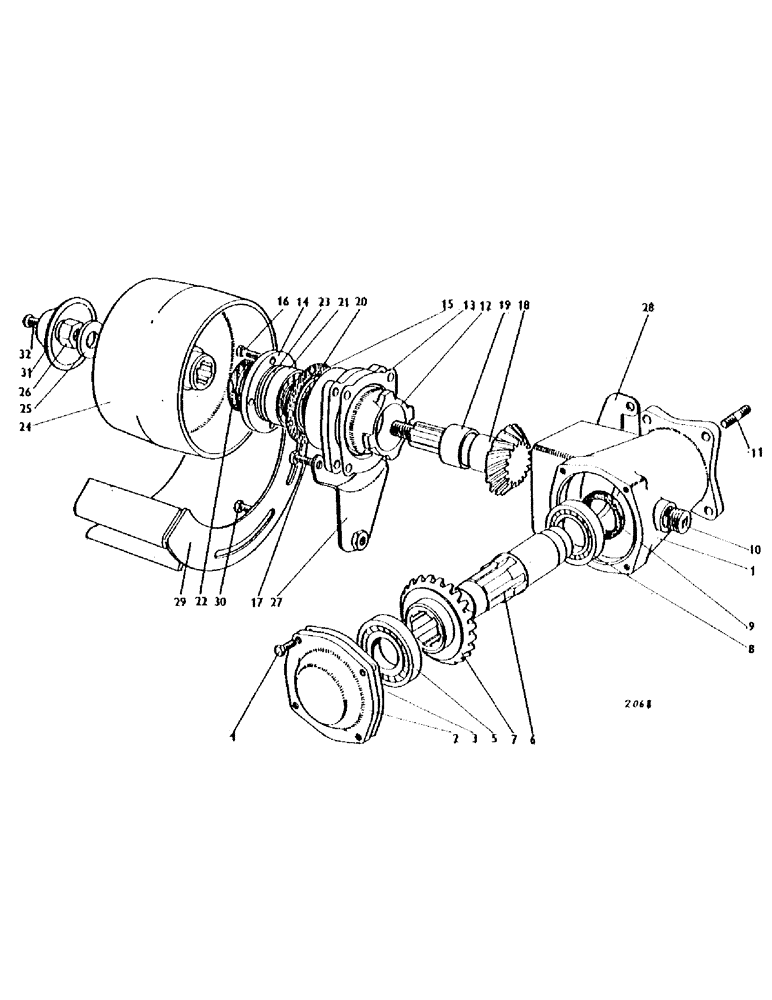

Запчасти Case IH 1200 (100) - BELT PULLEY, HEAVY DUTY, U1260, OPTIONAL EQUIPMENT Auxiliary Drive Units

1

K923299

HOUSING

1шт.

2

K923300

COVER

end cover

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K19482

SPRING WASHER

spring washer, 3/8 in.

4шт.

5

K19081

BALL BEARING

1шт.

6

K923302

SHAFT ASSY.

driveshaft

1шт.

7

K962486

WHEEL

bevel wheel and pinion

1шт.

8

K19047

BALL BEARING

1шт.

9

K623423

SEAL

oil seal

1шт.

10

K14518

PLUG

1шт.

11

K907546

STUD

special

4шт.

280717

NUT,7/16"-14, G5

4шт.

K626344

WASHER, LOCK

spring washer, 7/16 in.

4шт.

12

K923306

HOUSING

bearing housing

1шт.

14

K926332

RETAINER

bearing retainer

1шт.

15

K89206

JOINT

gasket

1шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in. bearing retainer to bearing housing

4шт.

K19481

SPRING WASHER

spring washer, 5/16 in. bearing retainer to bearing housing

4шт.

17

K603006

SCREW

setscrew, 7/16 UNC x 1 3/8 in. bearing housing to pulley housing

4шт.

K19483

SPRING WASHER

spring washer, 7/16 in. bearing housing to pulley housing

4шт.

18

K962486

WHEEL

bevel pinion and wheel

1шт.

19

K19166

NEEDLE

roller bearing

1шт.

20

K19165

BALL

bearing

1шт.

21

K19055

ROLLER

bearing

1шт.

22

K623436

OIL SEAL

oil seal

1шт.

24

K914944

BELT

pulley, 5 1/2 in. wide

1шт.

25

K19493

WASHER

special

1шт.

26

K617317

NUT

Nyloc nut, 3/4 UNF

1шт.

27

K907856

SUPPORT

bracket--guard U414 (907847) belt pulley guard

1шт.

28

K907815

SUPPORT

bracket--guard U414 (907847) belt pulley guard

1шт.

29

K907814

guard--belt pulley U414 (907847) belt pulley guard

1шт.

30

K602902

SCREW

setscrew, 3/8 UNC x 3/4 in. U414 (907847) belt pulley guard

2шт.

K19482

SPRING WASHER

spring washer, 3/8 in. U414 (907847) belt pulley guard

2шт.

K19472

WASHER

3/8 in. U414 (907847) belt pulley guard

2шт.

31

K912778

COVER

--pulley nut U1260 (925754)

1шт.

32

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in. U1260 (925754)

1шт.

K19480

SPRING WASHER

spring washer, 1/4 in. U1260 (925754)

1шт.

K921551

PRODUCT GRAPHIC

transfer--belt pulley

1шт.
