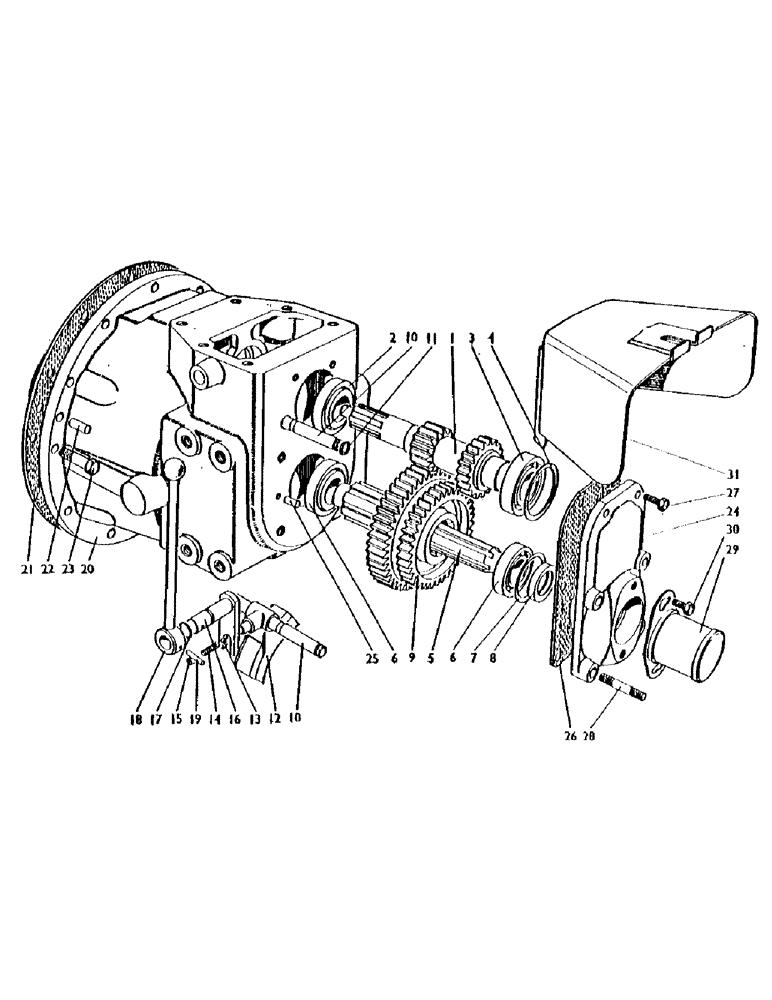

Запчасти Case IH 1200 (098) - POWER TAKE-OFF UNIT Auxiliary Drive Units

K918682

PTO

unit (complete)

1шт.

1

K915556

SHAFT

driveshaft

1шт.

2

K620046

BEARING

taper roller bearing

1шт.

3

K690766

TAPERED BEARING

taper roller bearing

1шт.

4

K30578

NO LONGER SERVICED

shims

1 setшт.

5

K915562

SHAFT

driven shaft

1шт.

6

K620046

BEARING

taper roller bearing

2шт.

8

K15177

OIL SEAL

oil seal, 1 3/8 x 2 1/8 x 3/8 in.

1шт.

9

K915563

GEAR

1шт.

10

K915567

SELECTOR

rod

1шт.

11

K621470

RING, SNAP

spring ring

1шт.

12

K915568

SELECTOR

fork

1шт.

13

K17063

BALL

steel ball, 1/4 in.

1шт.

14

K24831

SPRING

1шт.

15

K606021

SCREW

grubscrew, 5/16 UNC

1шт.

16

K915569

SELECTOR

lever (supersedes 920991)

1шт.

K15499

WASHER

3/4 in., special

1шт.

17

K623557

O-RING

'O' ring, 9/16 in. int. dia.

1шт.

18

K912008

NO LONGER SERVICED

operating lever

1шт.

19

K623726

PIN

Mills pin, 1/4 x 1 1/2 in.

1шт.

20

K917077

CASE

1шт.

21

K922591

GASKET

case to rear axle (supersedes 89175)

1шт.

22

K61412

PIN

dowel, 7/16 x 1 1/4 in. case to rear axle

1шт.

23

K603006

SCREW

bolt, 7/16 UNC x 1 3/8 in. case to rear axle

12шт.

K19483

SPRING WASHER

spring washer, 7/16 in. case to rear axle

12шт.

K606656

SCREW

7/16 UNC x 1 1/4 in. case to rear axle

4шт.

K11148

SPARE PART

shakeproof washer, 7/16 in. case to rear axle

4шт.

24

K915595

COVER

end cover

1шт.

25

K14577

DOWEL

1/4 x 9/16 in.

2шт.

26

K924217

GASKET

1шт.

27

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

setscrew, 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

spring washer, 5/16 in.

2шт.

28

K608311

STUD

7/16 UNC x 2 5/16 in.

4шт.

K19483

SPRING WASHER

spring washer, 7/16 in.

4шт.

280717

NUT,7/16"-14, G5

4шт.

29

K909111

COVER

--PTO shaft

1шт.

K626682

WASHER

5/16 in.

2шт.

30

K602840

SCREW

setscrew, 5/16 UNC x 1/2 in.

2шт.

31

K906893

GUARD

PTO guard U378 (906988)

1шт.
