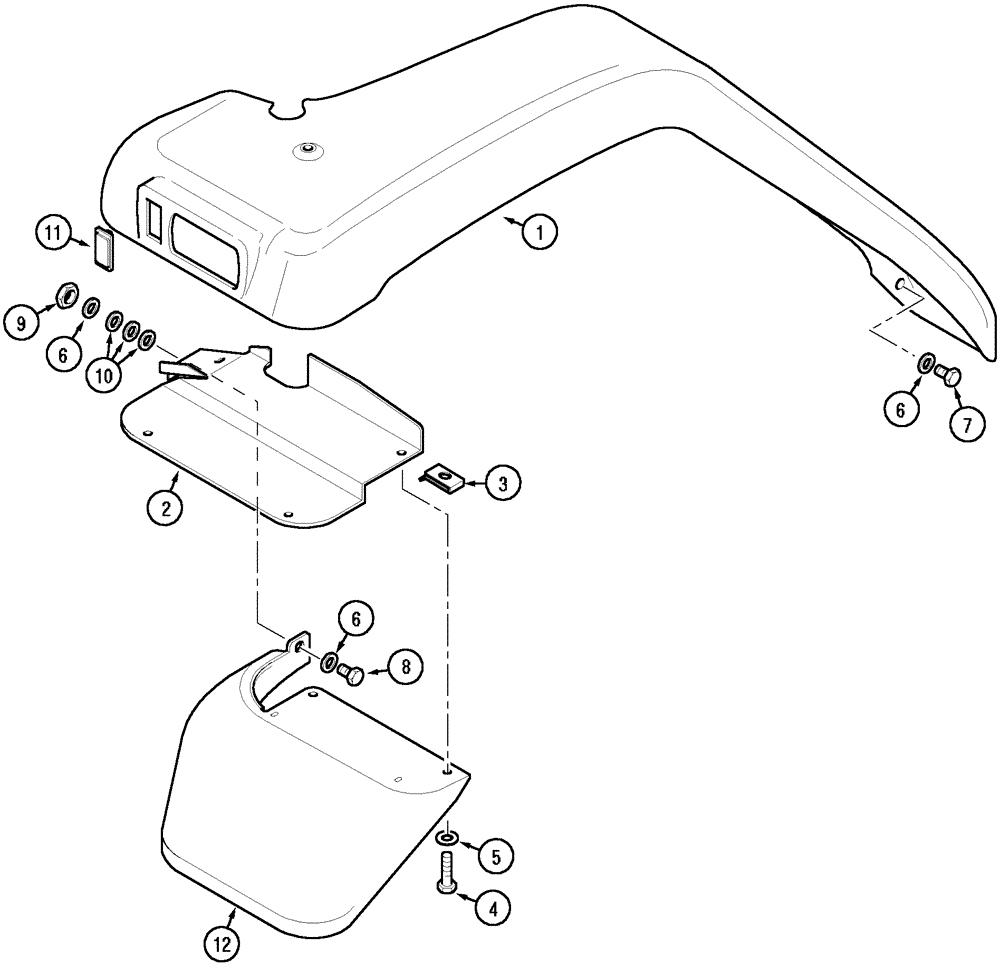

Запчасти Case IH CX90 (09-17) - REAR FENDERS - CAB OR NON CAB (09) - CHASSIS/ATTACHMENTS

1

232280A4

FENDER

Left

1шт.

1

232279A4

FENDER

Right

1шт.

2

232393A4

GUARD

Left

1шт.

2

232392A4

GUARD

Right

1шт.

3

833-40306

SPRING NUT,M6, U

6шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

5

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

12шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

221654A1

PLUG

Without Remote Hitch Switch

2шт.

12

310777A3

EXTENSION

Rear, Right

1шт.

12

310778A3

EXTENSION

Rear, Left

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

18шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
