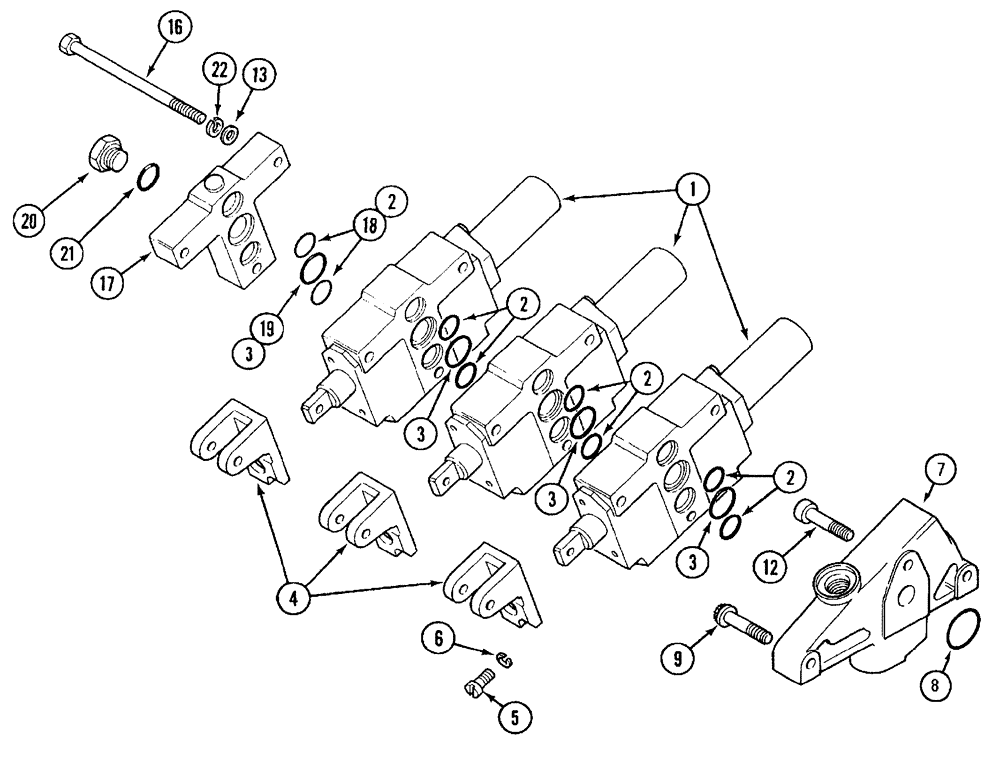

Запчасти Case IH CX90 (08-08) - AUXILIARY VALVES (08) - HYDRAULICS

1

1287379C91

VALVE

Double Acting W/O Check Valves

1шт.

1

1287384C91

VALVE

Double Acting With 1 Check Valve, Includes 2,3

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5

1шт.

4

1958026C2

SUPPORT

1шт.

5

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess

1шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

For Support Holes without Recess

1шт.

6

892-11006

LOCK WASHER,M6

1шт.

7

94070C1

PLATE

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

9

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3/8 x 1-3/4; 8

2шт.

12

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8 x 1-3/4

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

16

815-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

M8 x 80, 1 Valve

3шт.

16

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

M8 x 120, 2 Valve

3шт.

16

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

M8 x 160, 3 Valve

3шт.

17

1971165C1

COVER

1шт.

18

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5

2шт.

19

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5

1шт.

20

1971184C1

PLUG

1шт.

21

1971185C1

O-RING,13.3mm ID x 2.4mm Width

13.3 ID x 2.4

1шт.

22

892-11008

LOCK WASHER,8mm ID

3шт.
