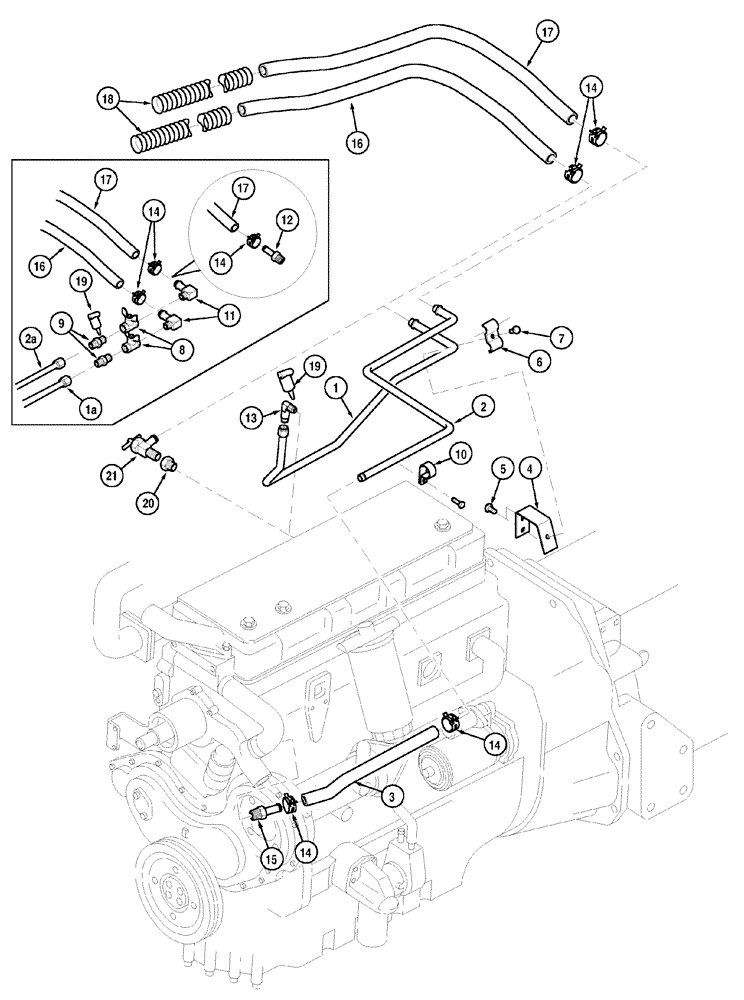

Запчасти Case IH CX90 (02-06) - HEATER HOSES (02) - ENGINE

1

353825A1

PIPE

Standard

1шт.

1

356114A1

PIPE

LP Cab

1шт.

1b

293920A2

PIPE

1шт.

2

353826A2

PIPE

Standard

1шт.

2

356115A1

PIPE

LP Cab

1шт.

2b

293921A2

PIPE,0.625" OD, 563, 357 mm Length

1шт.

3

293922A1

LARGE HOSE,408.00 mm, SAE 20R4 Class D1 or SAE J20R4 Class E

HOSE,LARGE , Front

1шт.

4

300249A1

SUPPORT

1шт.

5

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

6

3230039R1

CLAMP

1шт.

7

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

8

T102597

COCK

2шт.

9

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

2шт.

10

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

11

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

2шт.

12

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

LP Cab

2шт.

13

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

1шт.

14

1954736C1

HOSE CLAMP,#24

4шт.

15

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

16

REF

INSTRUCTION

Hose, Supply, See Page(s) 9-89

1шт.

16

Hose, Supply, LP Cab

1шт.

17

REF

INSTRUCTION

Hose, Return, See Page(s) 9-89

1шт.

17

Hose, Return, LP Cab

1шт.

18

294170A1

SPRING

2шт.

19

345-49

SEALANT

1 ml

1шт.

20

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

21

301803R1

SHUT-OFF VALVE

1шт.
