Запчасти Case IH CX90 (05-06) - STEERING PIPES FRONT (05) - STEERING

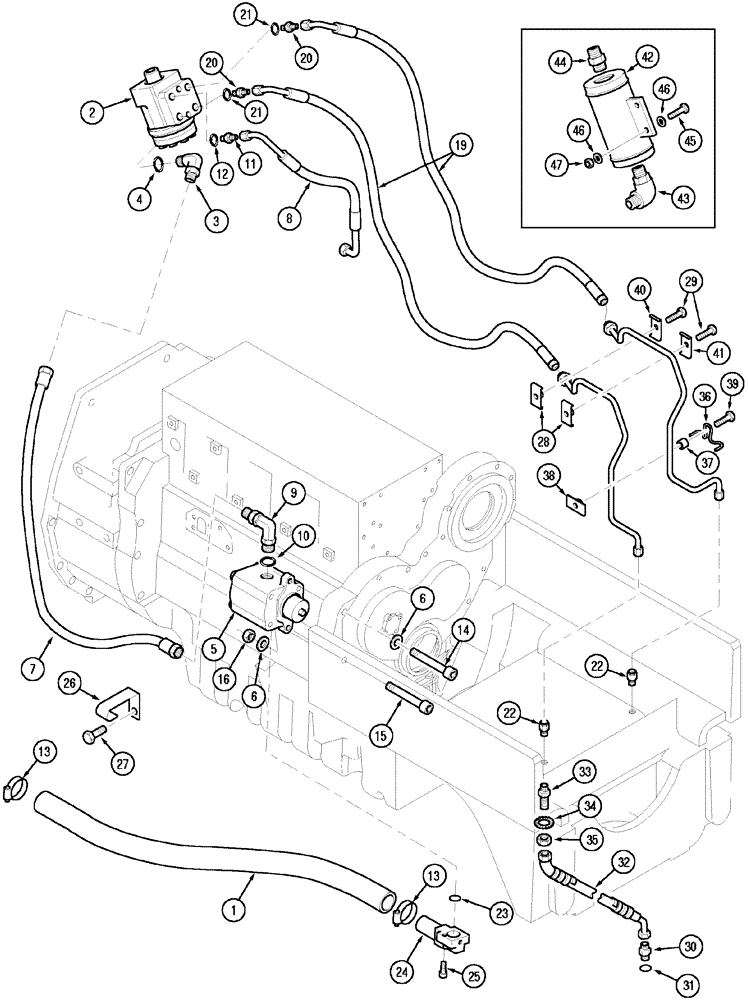

Схема запчастей Case IH CX90 - (05-06) - STEERING PIPES FRONT (05) - STEERING
34
27
44
13
42
20
2
47
8
11
41
23
40
22
7
33
15
6
37
20
38
45
30
21
5
46
31
29
14
4
25
26
36
32
43
21
10
13
35
3
24
28
16
39
6
1
9
46
22
19
12

Артикул

Название

Примечание

Количество

27

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

M10 x 16; 8,8

1шт.

28

297007A1

CLAMP

3шт.

29

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

30

83357C1

FITTING

2шт.

32

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

483 mm (19 in)

2шт.

33

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl x blkhd fl

2шт.

34

93-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

35

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

36

315626A2

CLIP,ELECTRICAL

1шт.

37

316407A1

SPACER

1шт.

38

297020A1

SUPPORT

1шт.

39

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

1шт.

40

297009A2

SUPPORT

2шт.

41

297002A1

SUPPORT

1шт.

42

338994A1

CHAMBER

1шт.

43

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

44

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

45

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

46

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

47

829-1308

NUT,M8, Cl 10

2шт.

359421A1

CLAMP

14 in, If So Equipped, Not Illustrated

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 22
