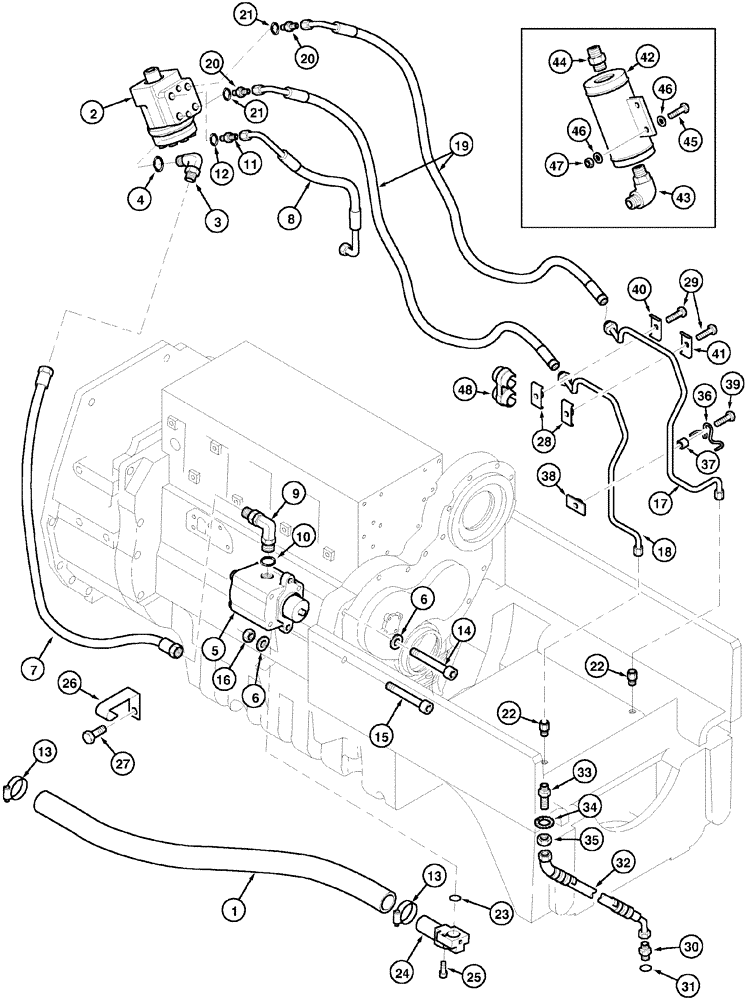

Запчасти Case IH CX90 (05-05) - STEERING PIPES FRONT (05) - STEERING

1

277437A2

HOSE

940 mm

1шт.

2

360234A1

STEERING VALVE

Rexroth

1шт.

360234A1R

REMAN-HYD PUMP

CX50, CX60, CX70, CX80, CX90, CX100, All (1/98-)

1шт.

360234A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

319548A1

SEAL KIT

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

242238A2

PUMP, HYDRAULIC

1шт.

B508499

GASKET KIT

Seals

1шт.

6

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

2шт.

7

242240A4

HOSE,12.70 mm ID x 750.00 mm, SAE 100R1

1шт.

8

247039A1

HOSE,12.70 mm ID x 650.00 mm, SAE 100R1

Return

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

2шт.

14

461-33844

HEX SOC SCREW,3/8"-16 x 2 3/4"

3/8 x 2-3/4

1шт.

15

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8 x 1-3/4

1шт.

16

329-106

NUT,3/8"-16, G8

1шт.

17

297103A1

HYD TUBE,0.375" OD, 791, 492 mm Length

Left

1шт.

17

374280A2

PIPE

Left, Row Crop

1шт.

18

297102A1

HYD TUBE

Right

1шт.

18

374281A1

TUBE ASSY.

Right, Row Crop

1шт.

19

297064A2

HOSE ASSY.

1000 mm

2шт.

20

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

99713C1

FITTING

4WD

2шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Row Crop

2шт.

23

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

24

292551A2

PIPE

1шт.

25

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

2шт.

26

303660A1

SUPPORT

1шт.
