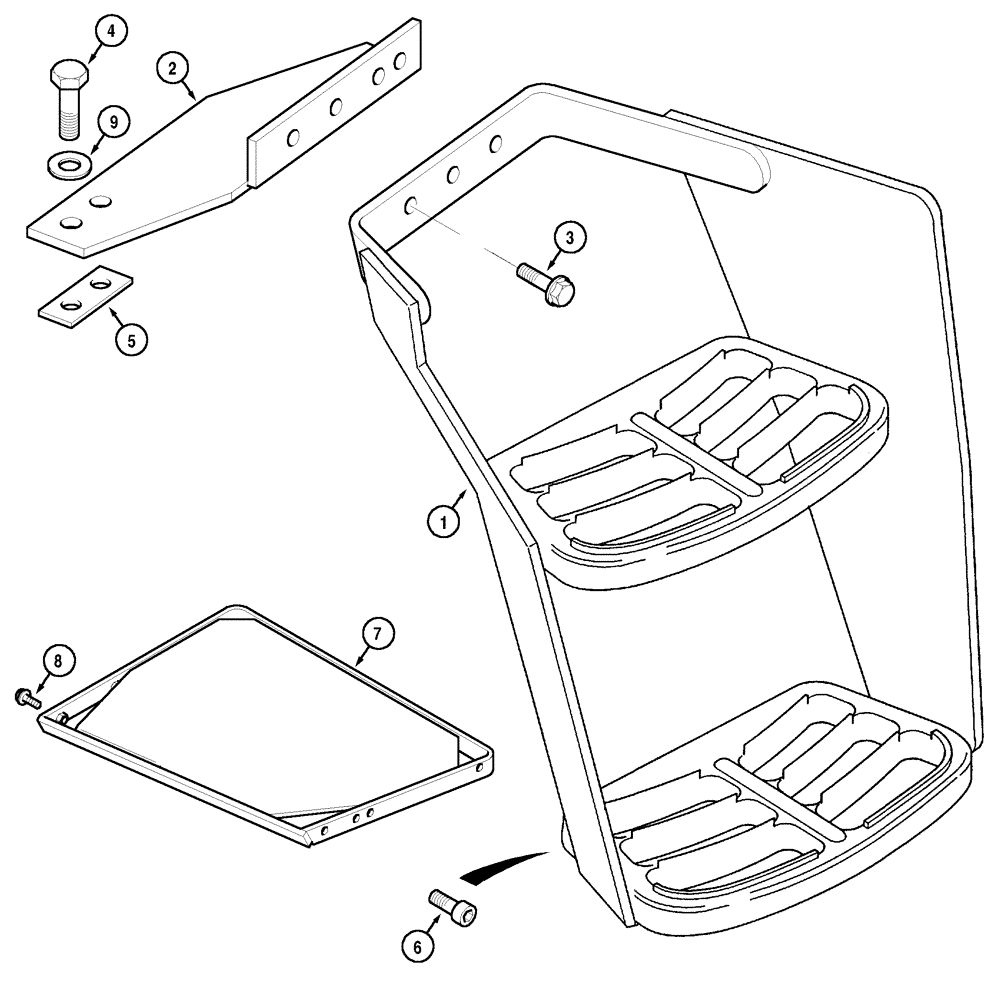

Запчасти Case IH CX80 (09-45) - STEPS (09) - CHASSIS/ATTACHMENTS

Left

1шт.

1

356390A1

STEP

Serial No. JJE1006247 -

1шт.

1

294691A1

STEP

Serial No. - JJE1006246

1шт.

2

294693A2

STANCHION

1шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

3

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

4

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

2шт.

5

258439A1

LARGE PLATE

PLATE, LARGE

1шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

7

247867A3

SUPPORT

1шт.

8

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
