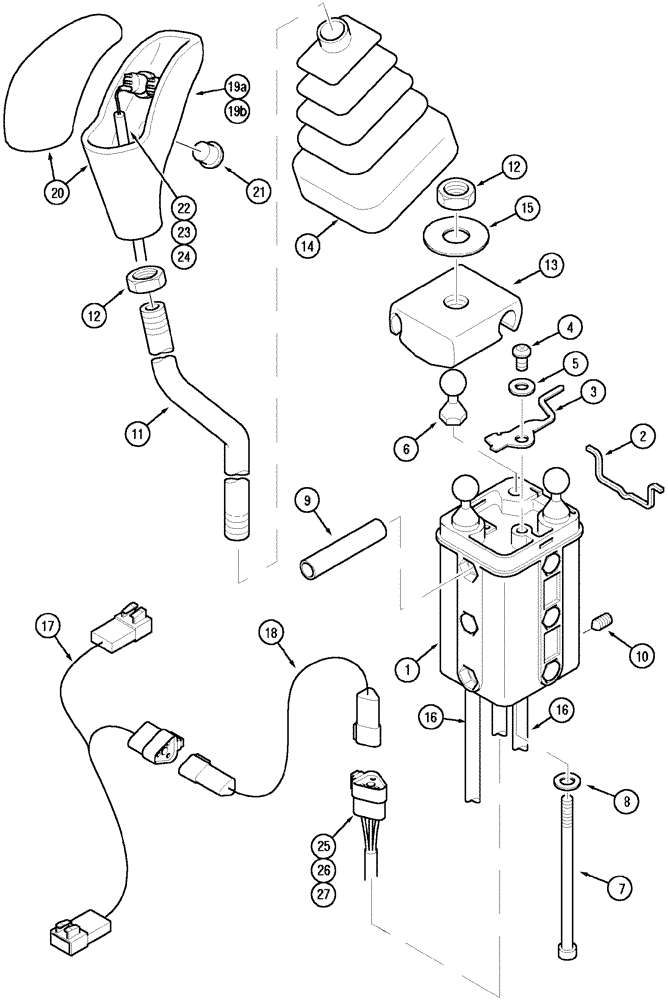

Запчасти Case IH CX80 (09-15) - CONTROL LEVER LOADER CONTROL (09) - CHASSIS/ATTACHMENTS

If So Equipped

1шт.

246993A3

CONTROL

Double Acting, Consists Of 1 - 18,19A,20 - 27

1шт.

246991A4

CONTROL

Consists Of 1 - 14,16,17,19B,20,21

1шт.

1

247713A2

VALVE, CONTROL

1шт.

2

258464A1

SPRING LOCK

1шт.

3

302704A1

LEVER

1шт.

4

760-34495

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

M4,8 x 9,5

1шт.

5

495-31022

WASHER,#10

1шт.

6

253277A1

BALL JOINT

1шт.

7

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

254284A1

TUBE,9 mm ID, 12 mm OD, 65.5 mm Length

2шт.

10

877-20810

SET SCREW,Hex Skt, M8 x 10mm, Cone Pt

M8 x 10

2шт.

11

302705A3

LEVER

1шт.

12

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

M14; 10

2шт.

13

253276A1

COUPLING FLANGE

1шт.

14

253274A1

BELLOWS

1шт.

15

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15,5 x 30 x 2,5 mm

1шт.

16

253271A2

CABLE SHEATH

2шт.

17

327852A2

HARNESS

1шт.

18

246904A1

HARNESS

1шт.

19a

246988A2

SHIFTING UNIT

Consists Of 20 - 24, Inc. Switch

1шт.

19b

246982A2

KNOB

Consists Of 20,21

1шт.

20

NSS

NOT SOLD SEPARAT

Knob

1шт.

21

253280A1

PLASTIC PLUG

1шт.

22

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

23

225297C1

ELEC CONNECTOR

1шт.

24

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

1шт.

25

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

1шт.

26

225296C1

ELEC CONNECTOR

1шт.

27

225295C1

ELEC CONNECTOR,Female, 3 Pin

1шт.
