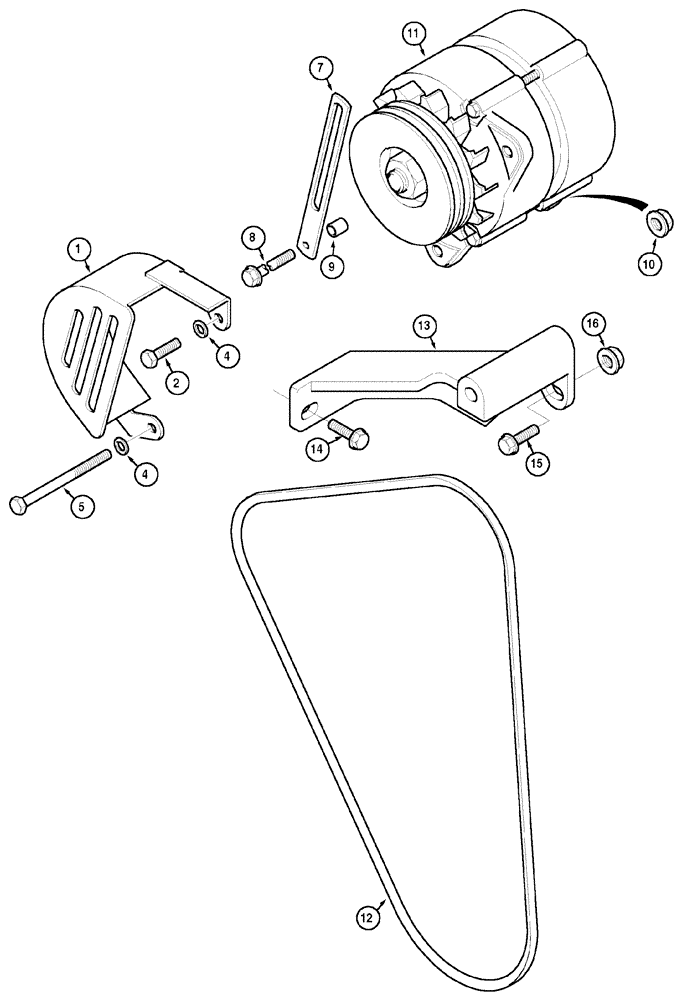

Запчасти Case IH CX70 (04-34) - ALTERNATOR AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

248036A2

GUARD

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

814-8130

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

M8 x 130; 8,8

1шт.

7

250840A1

TENSIONER

1шт.

8

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

M8 x 60; 8,8

1шт.

9

250841A1

SPACER

1шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

11

REF

INSTRUCTION

Alternator, See Page(s) 4-87

1шт.

12

241895A2

SET OF BELTS,10.00 mm W x 1452.00 mm L

1шт.

13

248041A1

SUPPORT

1шт.

14

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

15

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

1шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
