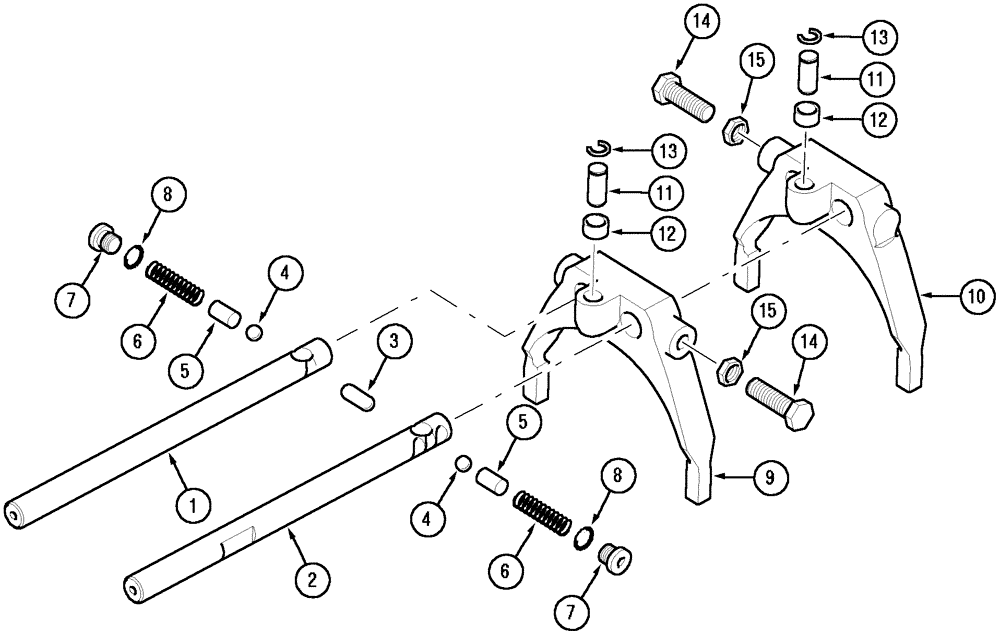

Запчасти Case IH CX70 (06-04) - TRANSMISSION CONTROL (06) - POWER TRAIN

1

254882A2

RAIL ASSY.

1st and 2nd Speed

1шт.

2

254883A2

RAIL ASSY.

3rd and 4th Speed

1шт.

3

255258A1

DOWEL

1шт.

4

511-10100

BALL,10mm OD, Gr 28

M10; 28 CRS

2шт.

5

837-10020

DOWEL,M10 x 20

3/8 x 3/4

2шт.

6

128866A1

SPRING

2шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

2шт.

8

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

278851A2

SHIFTER FORK

Includes 9,11, 1st and 2nd Speed

1шт.

278853A2

SHIFTER FORK

Includes 10,11, 3rd and 4th Speed

1шт.

9

278851A2

SHIFTER FORK

1шт.

10

278853A2

SHIFTER FORK

1шт.

11

A183146

SPLIT PIN/SAFETY PIN

1шт.

12

A178954

SLEEVE

1шт.

13

100-3344

SNAP RING,#X43, .438" Dia, E-Type

1шт.

14

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

15

829-4312

THIN NUT,Thin, M12 x 1.75, Cl 05

M12; 10

2шт.
