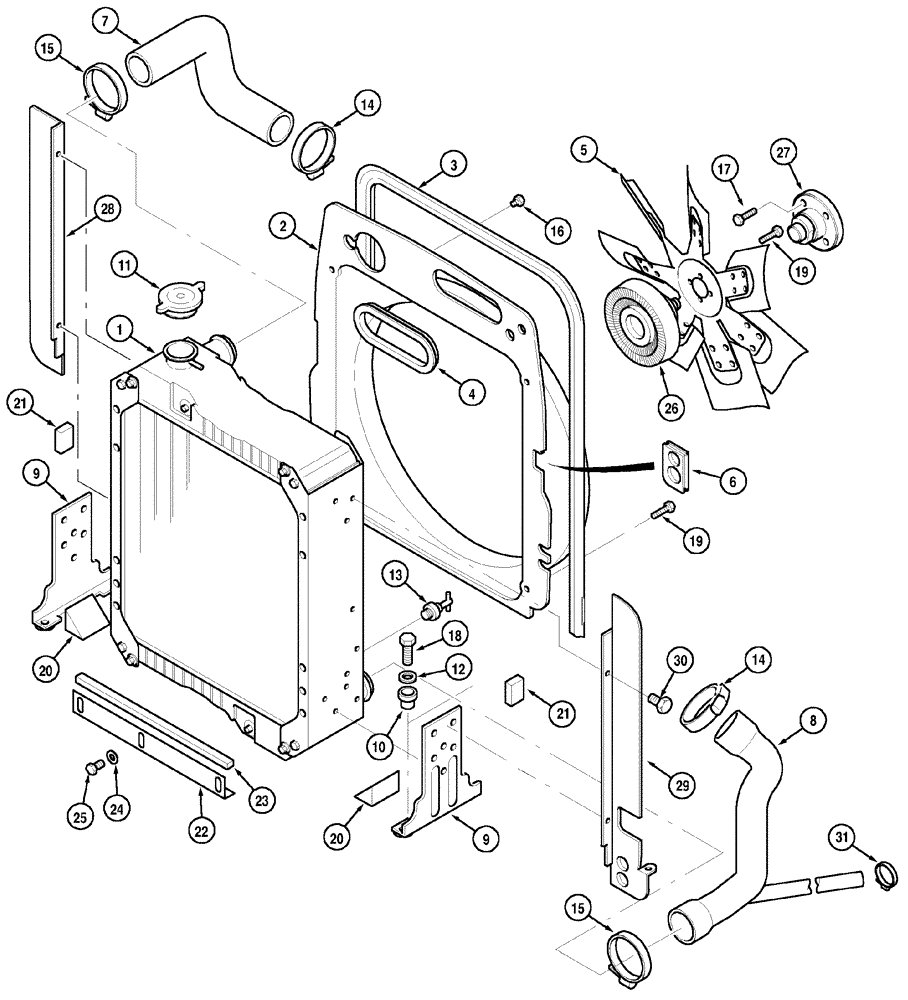

Запчасти Case IH CX70 (02-02) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

239979A3

RADIATOR

CX90, CX100

1шт.

1

222892A5

RADIATOR

Row 5

1шт.

1

222890A5

RADIATOR

CX70, CX80, CX90, Row 3

1шт.

2

244254A2

SHROUD

CX90, CX100

1шт.

2

225897A5

SHROUD

CX70, CX80

1шт.

2

373772A1

SHROUD

Sloping Hood

1шт.

3

229041A5

SEAL

1720 mm

1шт.

4

246478A4

SEAL

1шт.

5

223825A1

FAN

452 mm

1шт.

6

243455A2

SEAL

1шт.

7

224814A4

LARGE HOSE,56.30 mm ID x 178.00 mm, SAE J20R4, Class DI OR SAE J20R4, Class E

HOSE,LARGE Upper

1шт.

8

324818A1

LARGE HOSE,36.50 mm ID, 56.30 mm ID x 630.00 mm, SAE 20R4 CLASS D1

HOSE,LARGE , Serial No. CX90 - JJE1008568, Serial No. CX100 - JJE1008670, Use With 239979A3, Lower

1шт.

8

335187A1

LARGE HOSE

HOSE,LARGE , Serial No. CX90 JJE1008569 -, Serial No. CX100 JJE1008671 -, Use With 239979A3, Lower

1шт.

8

324817A1

LARGE HOSE,43.40 mm ID, 56.30 mm ID x 630.00 mm

HOSE,LARGE , Lower

1шт.

8

346960A1

LARGE HOSE,43.40 mm ID, 56.30 mm ID x 190.00 mm, SAE 20R4 CLASS D1

HOSE,LARGE , Lower, Serial No. CX70 JJE1008648 -

1шт.

9

378479A1

SUPPORT

Left Hand

1шт.

9

378480A1

SUPPORT

Right Hand

1шт.

9

374371A1

SUPPORT

Left Hand, Row Crop

2шт.

9

374372A1

SUPPORT

Right Hand, Row Crop

2шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

4шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

4шт.

13

217-92

COCK

1/4

1шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

15

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

2шт.

16

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

18

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

19

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

20

231504A1

SEAL

100 mm

2шт.

21

235898A1

SEAL

100 x 55 mm

2шт.

22

245391A4

SUPPORT

480.5 mm, Short

1шт.

22

245392A5

LARGE PLATE

PLATE, LARGE , Long

1шт.

23

252823A3

SEAL

4WD

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

3шт.

26

246462A2

DRIVE ASSY.

CX70, CX80

1шт.

26

226165A3

DRIVE,Cooling Fan Viscous

CX90, CX100

1шт.

27

230871A1

HUB

1шт.

28

313914A3

SUPPORT

Right

1шт.

29

313913A3

SUPPORT

Left

1шт.

30

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

6шт.

31

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.
