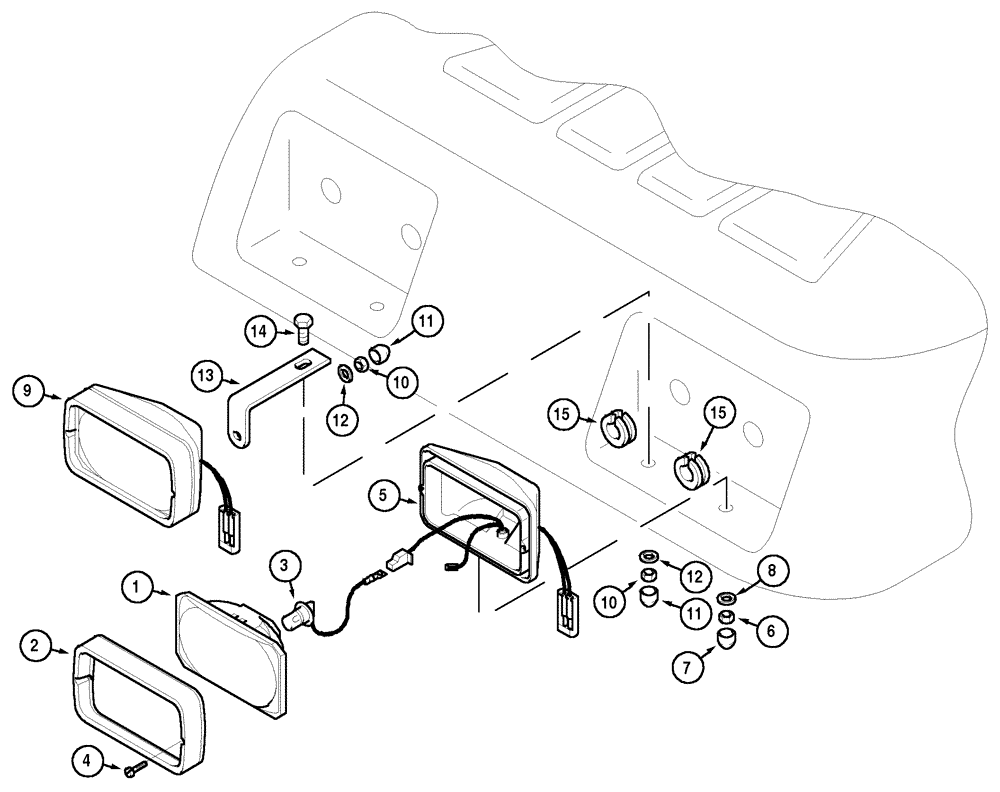

Запчасти Case IH CX60 (04-22) - FRONT WORKLIGHTS - CAB ROOF (04) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Front, Includes 1 - 5

2шт.

1

276498A1

LENS

1шт.

2

1964806C1

BEZEL

1шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

5

NSS

NOT SOLD SEPARAT

Base

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

3221520R1

CAP

2шт.

Headlight

1шт.

9

248915A1

HEADLIGHT

Front, With Front Hitch, Left Traffic, Europe Only

2шт.

9

248914A1

HEADLIGHT

Front, With Front Hitch, Right Traffic, Europe Only

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

3221520R1

CAP

2шт.

13

223472A1

SUPPORT

Europe Only, If So Equipped

2шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

15

96901C1

GROMMET

Without Worklights

4шт.

353-411

PLUG,Dome, 1.000" hole, Nylon

Not Illustrated

4шт.

353-425

PLUG,0.437 Hole OD

7/16 in, Not Illustrated

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
