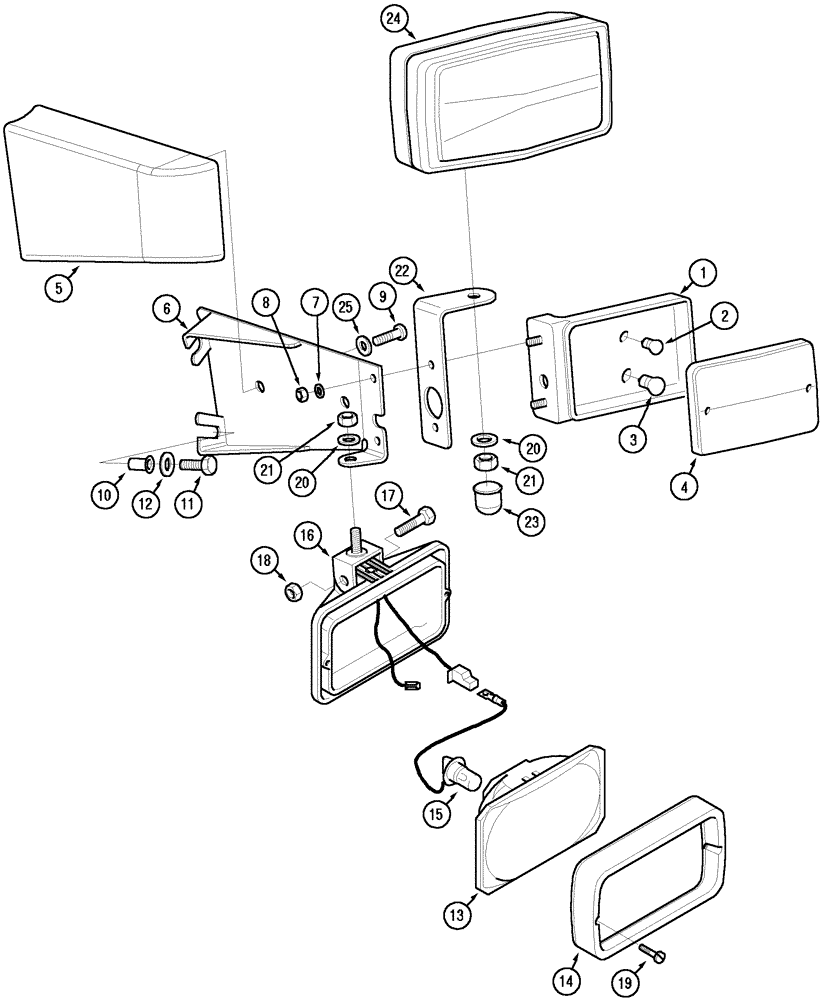

Запчасти Case IH CX60 (04-17) - LAMPS - FLASH AND POSITION (04) - ELECTRICAL SYSTEMS

With Cab

1шт.

Europe Only

1шт.

1

224622A2

LIGHT

LH, Includes 2 - 4

1шт.

1

224621A2

LIGHT

RH, Includes 2 - 4

1шт.

2

71421

BULB,R5W, 12V, 5W

12FV/5W

1шт.

3

1094366R1

BULB

12V, 21w

1шт.

4

A187631

LENS

1шт.

5

238908A2

COVER

Left

1шт.

5

238910A1

COVER

Right

1шт.

6

238907A3

SUPPORT ASSY.

Left

1шт.

6

238909A3

SUPPORT ASSY.

Right

1шт.

7

892-11005

LOCK WASHER,M5

4шт.

8

824-1405

NUT,M5, Cl 5

4шт.

9

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

4шт.

10

F35448

RIVET,8mm OD x 18mm L

8 mm

4шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

221936A2

LAMP, WORK

LIGHT, WORK , Cable 500 mm, Includes 13 - 19

2шт.

13

276498A1

LENS

1шт.

14

1964806C1

BEZEL

1шт.

15

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

16

A187915

BRACKET

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

19

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

224645A1

SUPPORT

2шт.

23

3221520R1

CAP

2шт.

24

248914A1

HEADLIGHT

With Front Hitch, RH Dip

2шт.

24

248915A1

HEADLIGHT

With Front Hitch, LH Dip

2шт.

25

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

4шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
