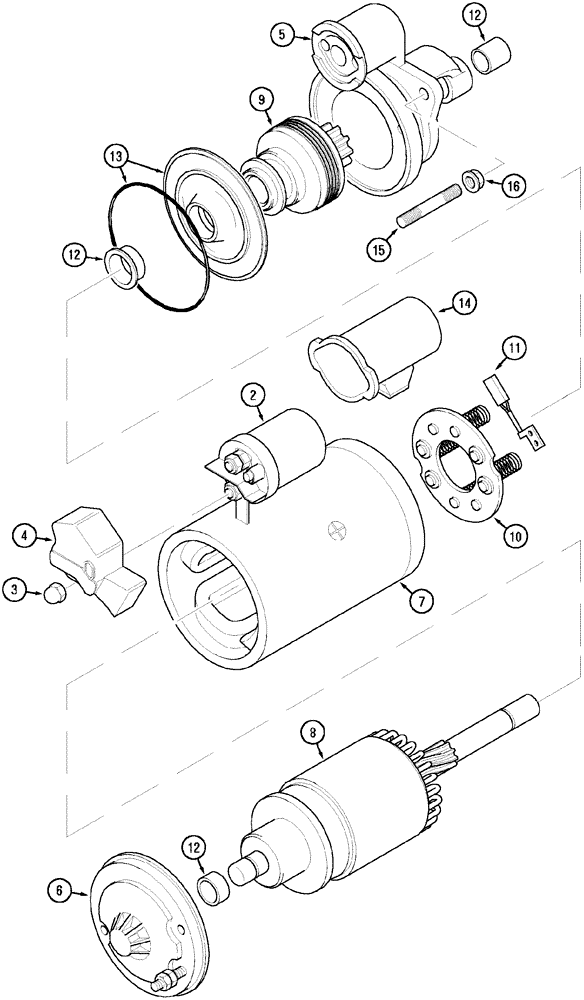

Запчасти Case IH CX60 (04-13) - STARTER MOTOR (04) - ELECTRICAL SYSTEMS

234986A1

STARTING MOTOR

2,8 kw, Includes 2 - 14

1шт.

234986A1R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR - for N.A. Only

1шт.

234986A1C

REMAN-STARTER

Return Number, STARTING MOTOR - for N.A. Only

1шт.

2

340954A1

SOLENOID

1шт.

3

114571A1

SPECIAL NUT

1шт.

4

114570A1

COVER

1шт.

5

341086A1

SUPPORT

1шт.

6

341085A1

SUPPORT

1шт.

7

340958A1

COIL ASSY.

1шт.

8

340959A1

ARMATURE

1шт.

9

340960A1

DRIVE

1шт.

10

340961A1

SUPPORT

1шт.

11

340962A1

BRUSH, COMMUTATOR

BRUSH

1шт.

12

340964A1

BRUSH, COMMUTATOR

BRUSH

1шт.

13

340955A1

SUPPORT

Includes, Seals

1шт.

14

340965A1

BELLOWS

1шт.

15

217984A1

STUD

3шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.
