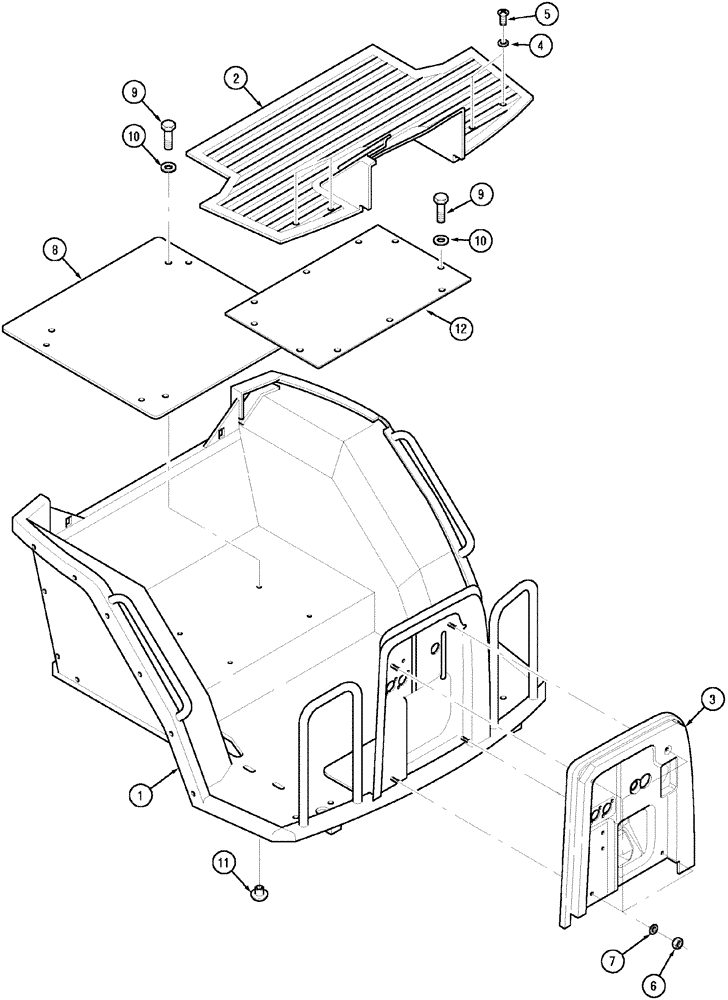

Запчасти Case IH CX60 (09-29) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

282083A6

CAB BODY

1шт.

2

254954A2

MAT

1шт.

3

258683A4

PADDING

1шт.

4

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

4шт.

5

782-84645

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 45

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

277442A1

SEAL

Bulkhead, Not Illustrated

1шт.

8

242924A2

PANEL ASSY.

1шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

16шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

11

301186A1

PLASTIC PLUG

2шт.

12

177602A3

FLAP

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
