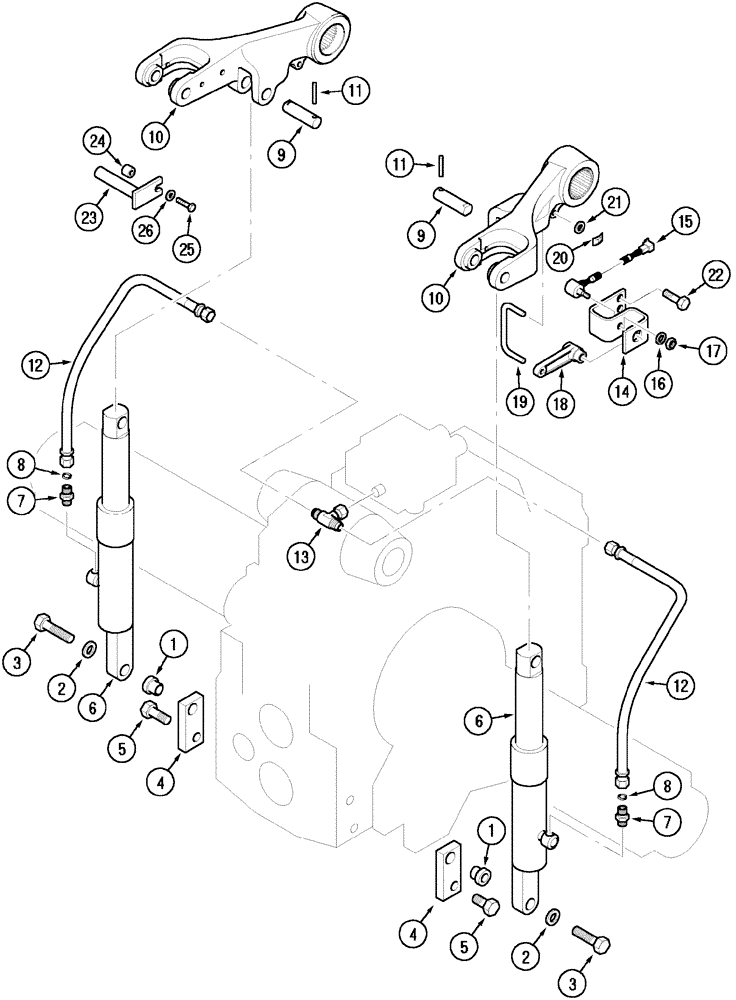

Запчасти Case IH CX60 (08-19) - ASSISTOR RAM AND PIPES (08) - HYDRAULICS

Cylinder 2

1шт.

1

225289A1

SLEEVE

2шт.

2

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

3

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

2шт.

4

3129039R1

PLATE

2шт.

5

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

6

235430A1

CYLINDER ASSY.

50 mm, See Page(s) 8-51

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

2шт.

9

225165A3

PIN

2шт.

10

310995A1

ROCKER ARM

Left

1шт.

10

310996A1

ROCKER ARM

Right

1шт.

11

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

2шт.

11

838-3840

PIN,8mm OD x 40mm L, Coiled

8 x 40 mm

2шт.

12

224828A2

HOSE

665 mm

2шт.

13

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

1шт.

14

248489A2

SUPPORT

1шт.

15

122756A3

POTENTIOMETER,1000 Ohm, 8V

1K, Position, Serial No. JJE1015980

1шт.

15

393795A1

POTENTIOMETER,1000 Ohm, 8V

Serial No. JJE1015981, Position

1шт.

16

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

17

192231A1

NUT

1/4 in

1шт.

18

291212A2

LEVER

1шт.

18b

878-2056

SET SCREW,M5 x 6mm

1шт.

19

291213A2

STEM

2шт.

20

131-889

PUSH-ON NUT,5/16", Push-on

1/8 in

2шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

23

225163A1

PIN

2шт.

24

1331994C1

SPACER

2шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
