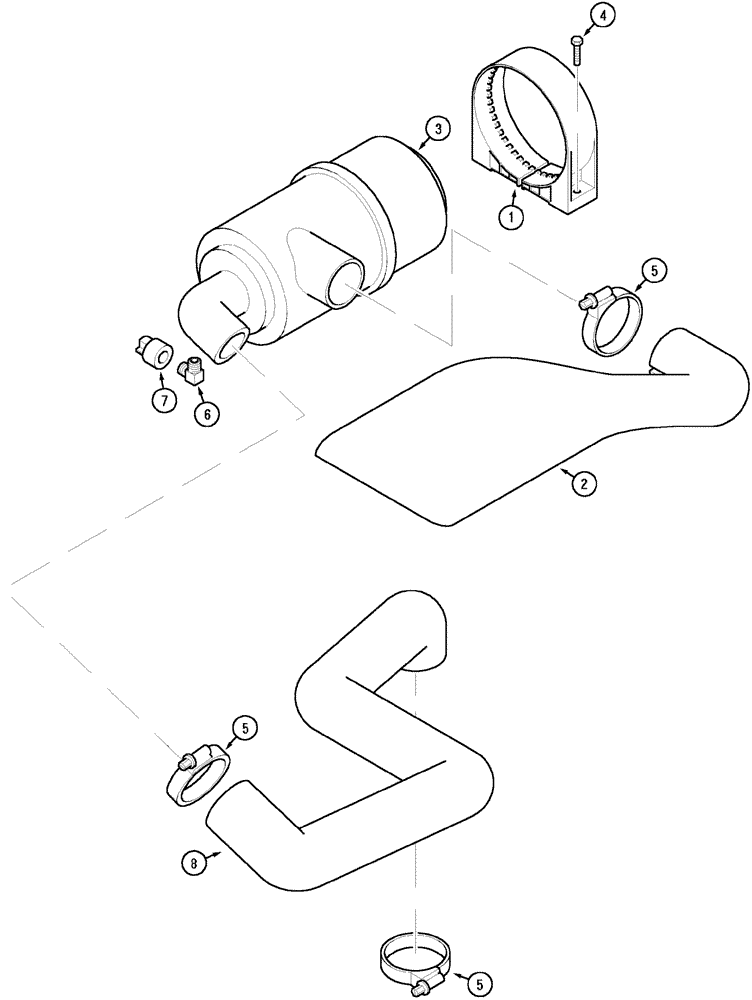

Запчасти Case IH CX60 (02-09) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

Normally Aspirated

1шт.

Fixed Hood

1шт.

1

235298A1

SUPPORT

1шт.

2

244349A3

DUCT

1шт.

3

134439A1

AIR CLEANER

See Page(s) 2-23

1шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

5

214-1444

HOSE CLAMP,58.6mm - 82.5mm

3шт.

6

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

7

279492A1

RESTRICTION SWITCH

Restrictor

1шт.

8

227264A3

LARGE HOSE

HOSE,LARGE

1шт.
