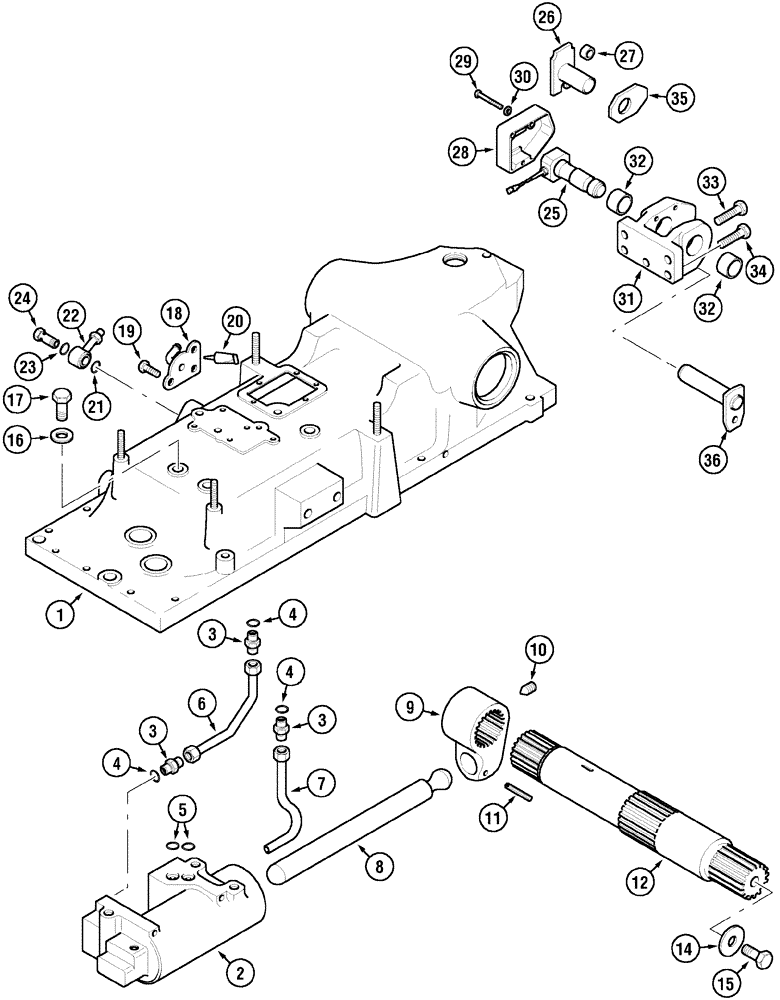

Запчасти Case IH CX60 (08-13) - DRAFT CONTROL (08) - HYDRAULICS

1

374189A1

HOUSING ASSY.

See Page(s) 8-35

1шт.

2

303616A1

CYLINDER ASSY.

Draft Control, See Page(s) 8-45

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4

5шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

6

224134A1

HYD TUBE

1шт.

7

224135A1

HYD TUBE

1шт.

8

400054R2

ROD

1шт.

9

400053R4

LEVER

1шт.

10

376069R1

SET SCREW

1шт.

11

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

5/16" x 2 1/4", Coiled

1шт.

12

246571A1

SHAFT

1шт.

13

376057R1

BUCKET TOOTH KEY

1шт.

14

537126R2

PLATE

2шт.

15

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

2шт.

16

400000R1

SEALING WASHER

3шт.

17

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

1/2 x 1-3/8; 5

3шт.

18

224826A1

COVER

1шт.

19

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3шт.

20

B17501

LOCTITE

6 ml

1шт.

22

313810A1

PIPE,88.9 mm Length

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

66766C1

PLUG

1шт.

25

305135A1

SENSOR

1шт.

26

228953A1

PIN,36.88mm OD x 115mm L

1шт.

27

1331994C1

SPACER

3шт.

28

227538A1

COVER

1шт.

29

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

30

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

3шт.

31

375929A1

SUPPORT ASSY.

With Ride Control

1шт.

31

324450A1

SUPPORT ASSY.

Includes 32

1шт.

32

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

33

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

34

61-36232

HEX SOC SCREW,5/8"-11 x 2"

5/8 x 2

4шт.

35

308206A1

LARGE PLATE

PLATE, LARGE , If So Equipped

1шт.

36

376404A1

LARGE PIN

PIN, LARGE , With Ride Control

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
