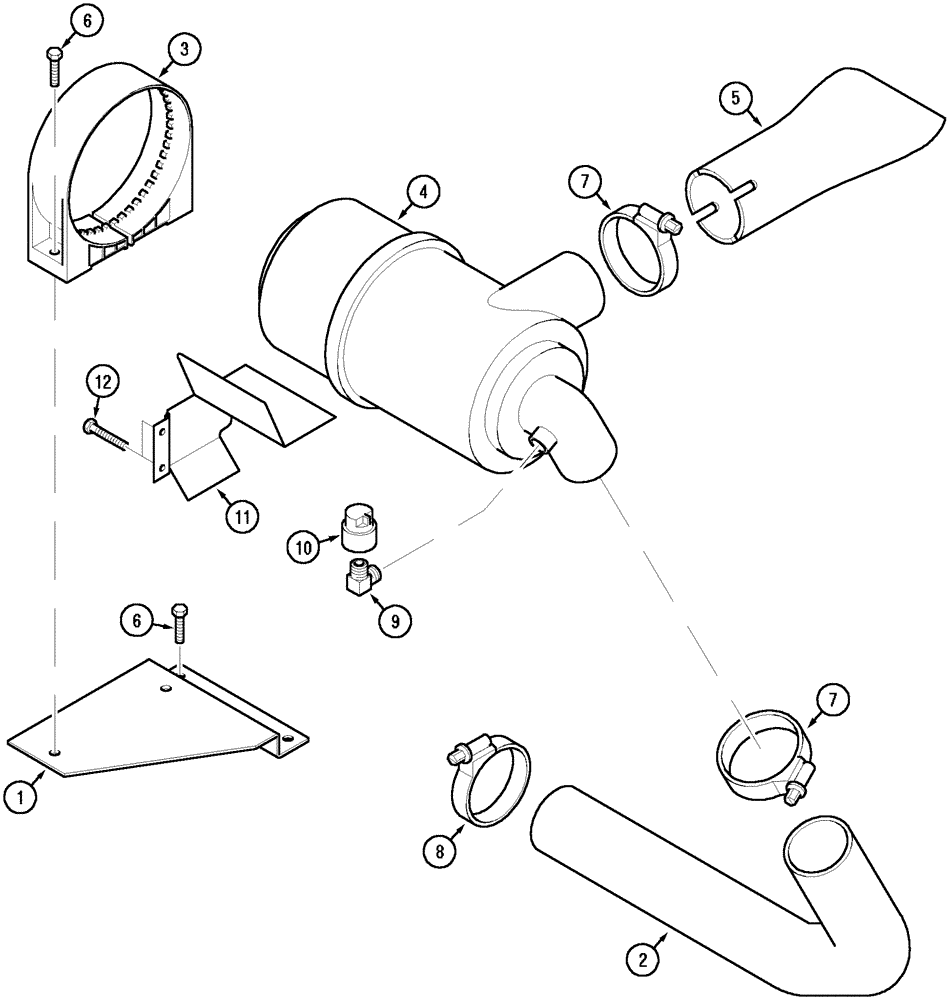

Запчасти Case IH CX60 (02-08) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

With Turbocharger

1шт.

Tilting Hood

1шт.

1

244437A2

SUPPORT

1шт.

2

244438A3

INTAKE AIR HOSE,46.00 mm ID, 63.50 mm ID x 340.00 mm

1шт.

3

235298A1

SUPPORT

1шт.

4

134439A1

AIR CLEANER

See Page(s) 2-23

1шт.

5

243180A3

DUCT

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

7

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

8

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

9

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

10

279492A1

RESTRICTION SWITCH

Restrictor

1шт.

11

292038A2

GUARD

1шт.

12

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.
