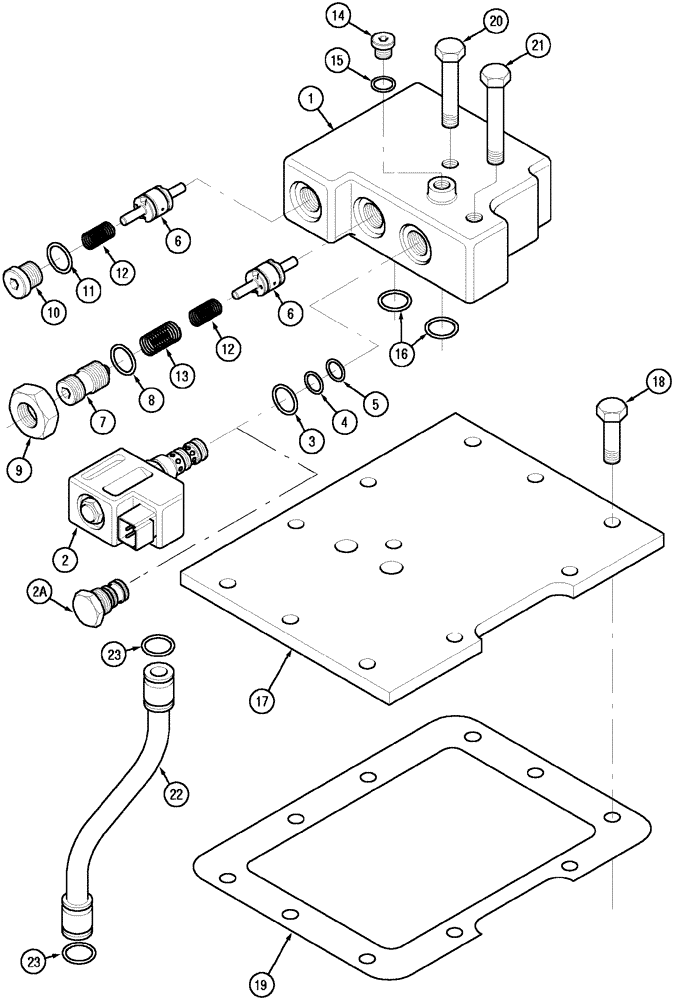

Запчасти Case IH CX60 (08-06) - REGULATOR VALVE - 2 SPEED POWER SHIFT (08) - HYDRAULICS

233773A4

VALVE, CONTROL

16 Speed, Consists Of 1,2,3 - 16

1шт.

283356A2

VALVE, CONTROL

8 Speed, Consists Of 1,2A,3 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

349295A1

SOLENOID VALVE

Includes 3,4,5

1шт.

2b

177120A1

PLUG

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

6

233779A2

SPOOL

2шт.

7

233780A2

PLUG

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

3/4 in

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

244946A1

SPRING

2шт.

13

244947A1

SPRING

1шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

Incl 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

17

243634A2

SUPPORT ASSY.

1шт.

18

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

9шт.

19

246856A2

GASKET

1шт.

20

326-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

3/8 x 2-1/2; 8

1шт.

21

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

22

246194A1

PIPE,9.52 mm OD, 98, 50.3 mm Length

1шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.
