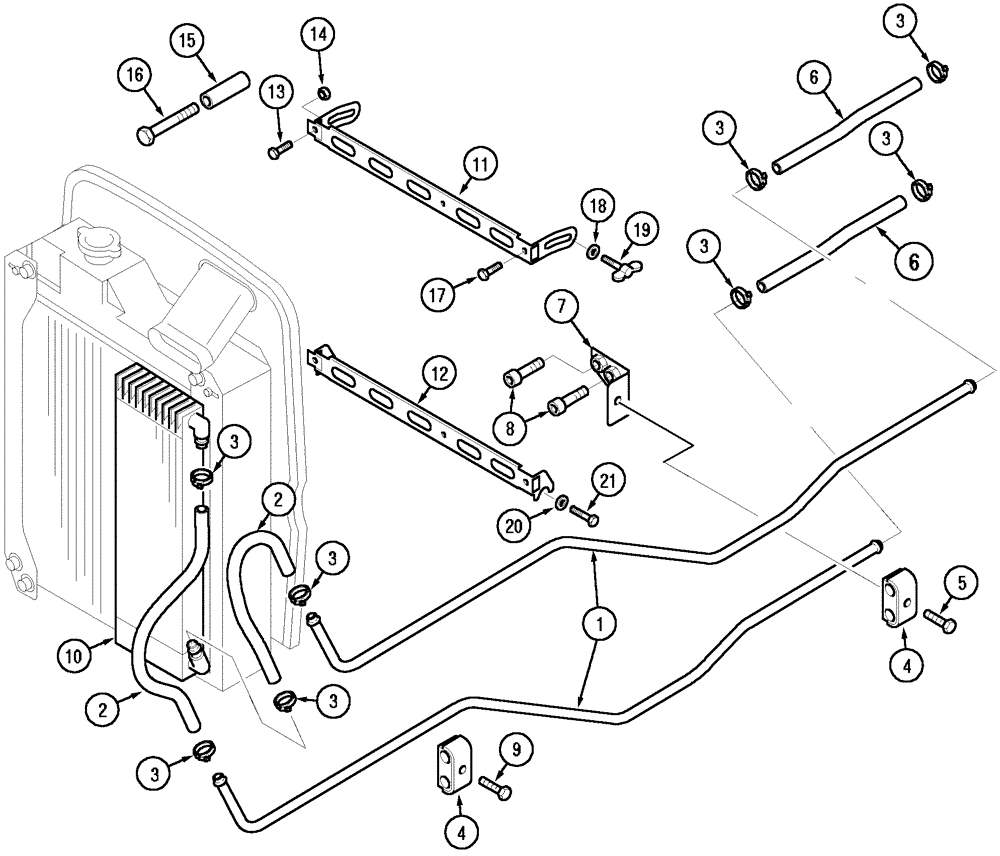

Запчасти Case IH CX60 (08-01) - OIL COOLER AND PIPES (08) - HYDRAULICS

1

295959A1

HYD TUBE,0.5" OD, 734, 148 mm Length

2шт.

2

278813A1

A/C HOSE,12.70 mm ID x 460.00 mm, SAE 100R6

2шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

8шт.

4

258490A2

SHIN

2шт.

5

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

6

297072A1

HOSE,12.7 mm ID x 280.00 mm, SAE 100R6

2шт.

7

305478A1

SUPPORT

1шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

10

221977A6

COOLER, OIL

1шт.

11

300460A1

SUPPORT

1шт.

12

300461A1

SUPPORT

1шт.

13

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

5шт.

14

282164A1

NUT

2шт.

15

300396A1

SPACER

With Air Conditioning

1шт.

16

844-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

M8 x 65;8,8, With Air Conditioning

1шт.

17

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

6шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

19

906044R1

THUMB SCREW,M8 x 16mm

2шт.

20

300395A1

BUSHING

2шт.

21

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.
