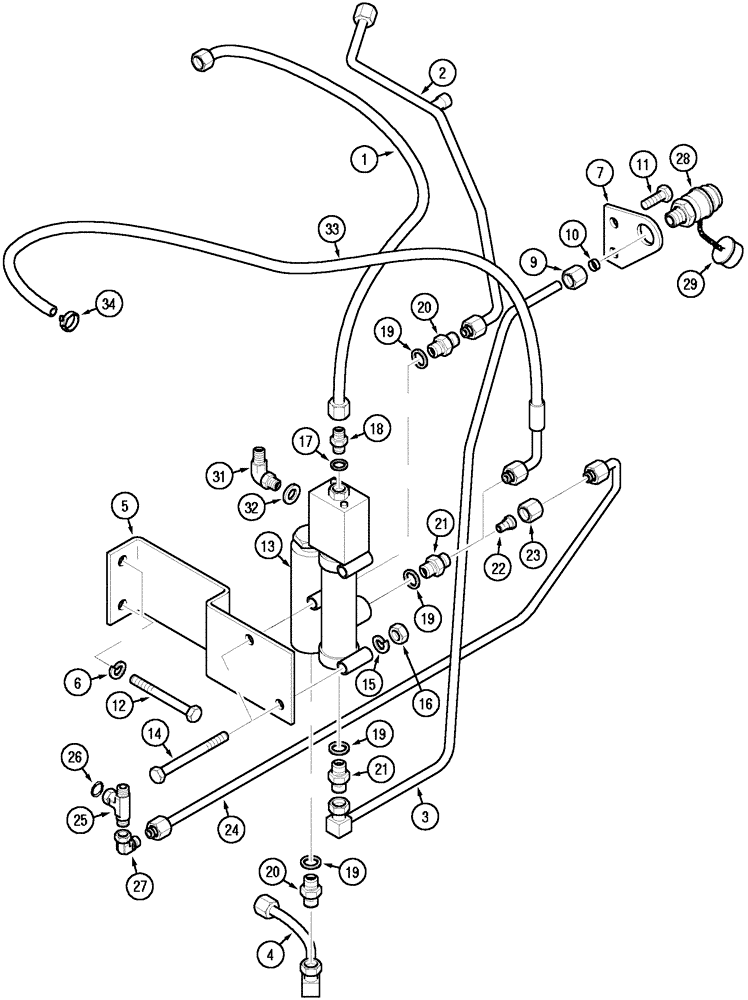

Запчасти Case IH CX60 (07-06) - HYDRAULIC TRAILER BRAKE CIRCUIT (07) - BRAKES

1

315503A1

HOSE

1шт.

2

248275A2

HYD TUBE

1шт.

3

248274A2

HYD TUBE

1шт.

4

294183A1

HYD TUBE,0.625" OD, 133.8, 37.9 mm Length

1шт.

5

248273A1

SUPPORT ASSY.

1шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

102473A1

SUPPORT

1шт.

9

1500671C1

NUT

M18

1шт.

10

1500670C1

SLEEVE

1шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

12

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

13

1500659C91

VALVE

1шт.

1539049C1

GASKET

1шт.

13

1536389C1

VALVE

For Switzerland

1шт.

14

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

15

492-11031

LOCK WASHER,5/16"

2шт.

16

425-105

NUT,5/16"-18, G5

2шт.

17

709803R1

SEALING WASHER

Copper

1шт.

18

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

7/16x10 mm

1шт.

18

1536544C1

ELBOW

For Switzerland

1шт.

19

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

4шт.

20

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

18x16 mm

2шт.

21

1500662C2

ADAPTER,M18 x 1.5 x 3/4"-16, 37º Fl

18x12 mm

2шт.

22

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

9/16 fl

1шт.

23

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

1/2

1шт.

24

258561A2

HYD TUBE

1шт.

25

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl, Includes 26

1шт.

27

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

28

3131463R91

QUICK MALE COUPLING

Includes 29

1шт.

29

3147728R1

PLUG

1шт.

31

1536544C1

ELBOW

For Switzerland

1шт.

32

709803R1

SEALING WASHER

For Switzerland

1шт.

33

326243A1

HOSE

If So Equipped

1шт.

34

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

If So Equipped

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
