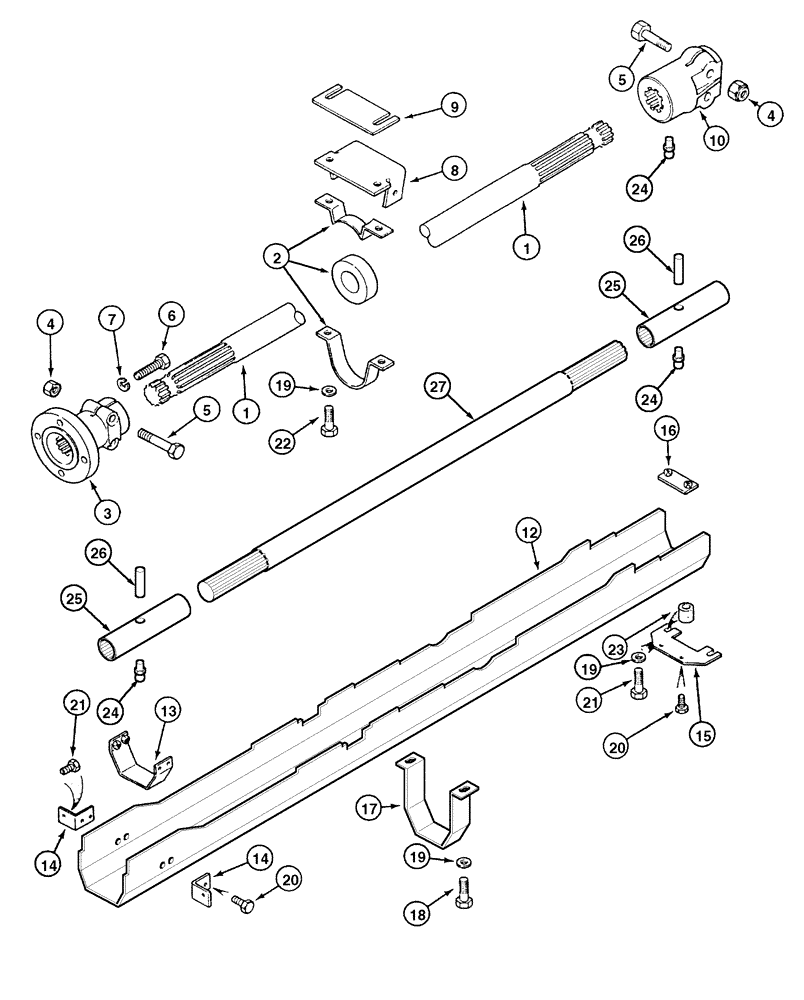

Запчасти Case IH CX60 (06-30) - DRIVE SHAFT AND SHIELD (06) - POWER TRAIN

1

223202A1

DRIVE SHAFT

Serial No. - JJE1015542

1шт.

2

226878A1

BEARING ASSY,32.01mm ID

1шт.

3

1537306C2

FLANGE

UNIVERSAL JOINT YOKE , Serial No. - JJE1015542

1шт.

4

K965414

NUT

M10

4шт.

5

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

M10 x 60

4шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

Support, Not Used

1шт.

9

227795A1

SHIM

0.5 mm

1шт.

9

227797A1

SHIM

1.0 mm

1шт.

9

227799A1

SHIM

2.0 mm

1шт.

10

1537839C1

SPLINED COUPLING,24T

Serial No. - JJE1015542

1шт.

12

245284A3

GUARD

1шт.

13

245656A2

SUPPORT

1шт.

14

245659A1

BRACKET

2шт.

15

1536604C1

SUPPORT

1шт.

16

1536605C1

LARGE PLATE

PLATE, LARGE

1шт.

17

245660A1

SUPPORT

2шт.

18

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

22

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

23

1537849C1

SPACER

2шт.

391803A1

SPLINED COUPLING

Consists Of 24 - 26, Serial No. JJE1015543 -

1шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

25

394009A1

SPLINED COUPLING

Serial No. JJE1015543 -

1шт.

26

838-5840

LOCK PIN,M8 x 40, Slotted

1шт.

27

373415A1

DRIVE SHAFT

Serial No. JJE1015543 -

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

8шт.
