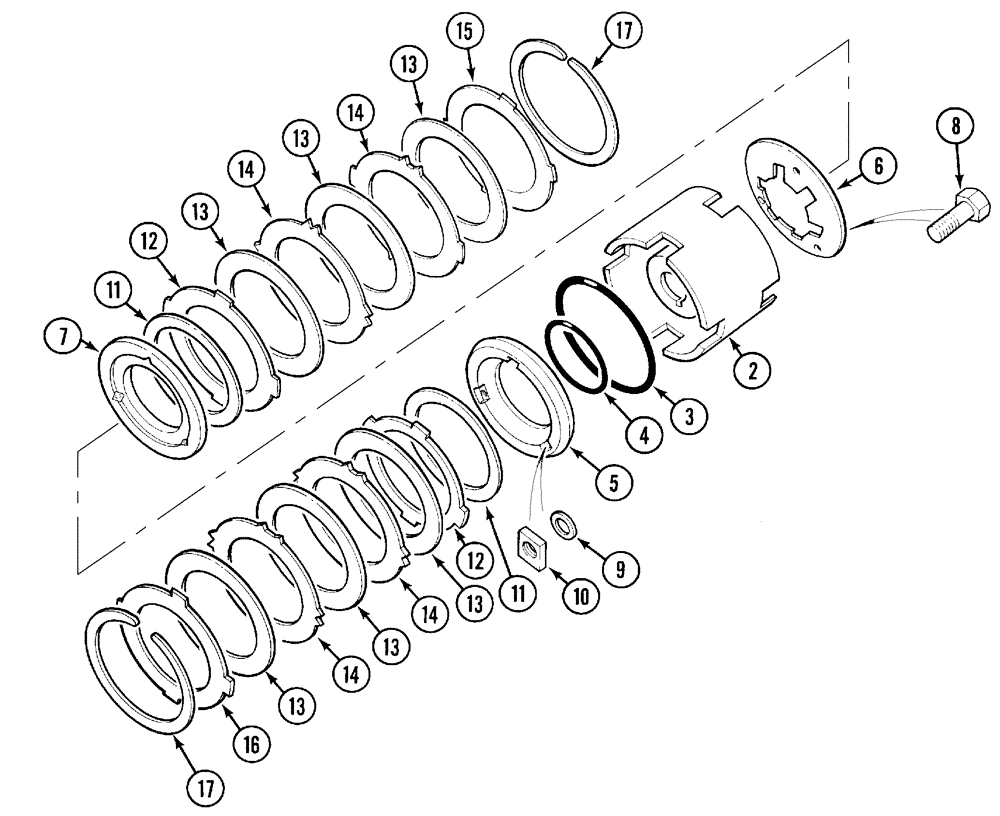

Запчасти Case IH CX60 (06-07) - TRANSMISSION TWO SPEED POWER SHIFT (06) - POWER TRAIN

2

1502339C1

HOUSING

1шт.

3

401724R1

SEAL,0.551" ID x 0.07" Width

Outer

1шт.

4

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

Inner

1шт.

5

402570R1

PISTON

1шт.

6

402574R1

BELLEVILLE WASHER

Belleville

3шт.

7

402573R1

PLATE

Pressure

1шт.

8

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

3шт.

9

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

3шт.

10

65240C1

SQUARE NUT

1/4

3шт.

11

70021C1

SHIM

0.014 in

1шт.

11

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

0.024 in

1шт.

11

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

0.036 in

1шт.

12

402572R1

PLATE

2шт.

13

401716R3

DISC

6шт.

14

401717R1

PLATE

4шт.

15

1502340C1

PLATE

1шт.

16

402569R1

PLATE

1шт.

17

401720R1

CIRCLIP

2шт.
