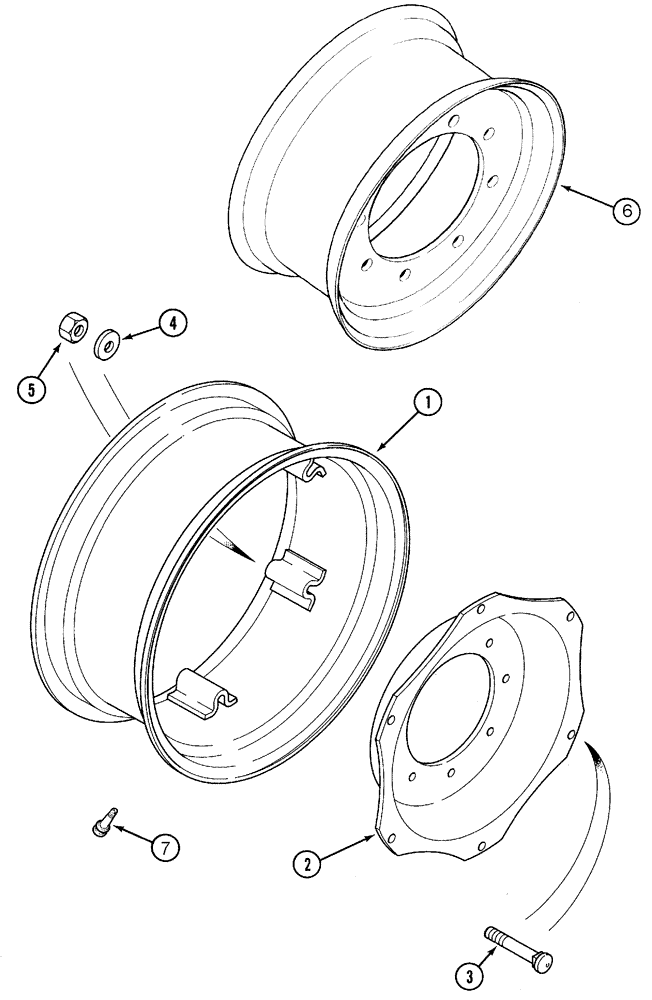

Запчасти Case IH CX60 (05-20) - FRONT WHEELS (05) - STEERING

N.A. Only

1шт.

4WD

1шт.

1

1985675C1

RIM

WHEEL , W7x24, For Tires 8.3,9.5 x 24

2шт.

2

1985673C1

DISC, WHEEL

24 in

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

M16 x 80; 8,8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

1

1985672C1

RIM

WHEEL , W10x24, For Tires 11.2,12.4 x 24, For Tires 320/75 x 24

2шт.

2

1985673C1

DISC, WHEEL

24 in

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

M16 x 80; 8,8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

1

1985677C1

RIM

WHEEL , W12x24, For Tires 13.6,14.9 x 24

2шт.

2

1985673C1

DISC, WHEEL

24 in

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

M16 x 80; 8,8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

6

1343072C1

WHEEL

10.5 x 17.5, For Tires 14 x 17.5

2шт.

7

1970979C1

VALVE

Stem

2шт.
