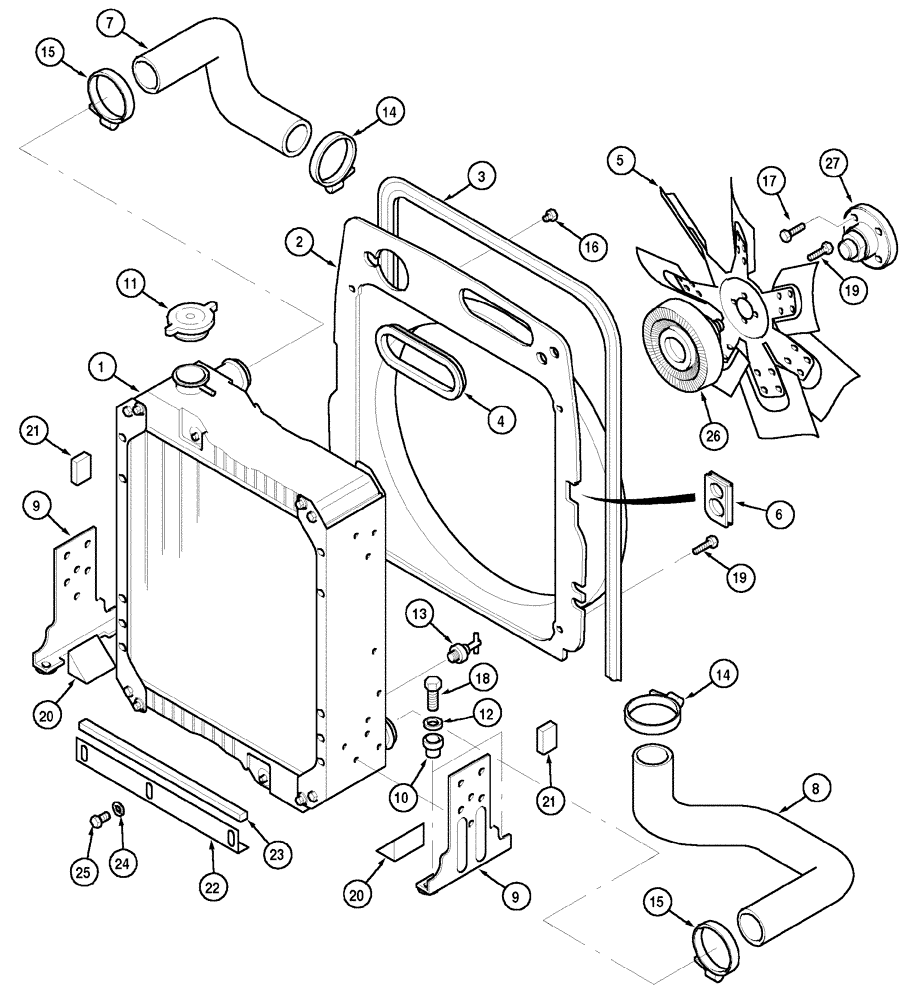

Запчасти Case IH CX60 (02-02) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

222890A5

RADIATOR

1шт.

2

225897A5

SHROUD

1шт.

3

229041A5

SEAL

1720 mm

1шт.

4

246478A4

SEAL

1шт.

5

249462A2

FAN

452 mm

1шт.

6

243455A2

SEAL

1шт.

7

234493A4

RADIATOR HOSE,37.60 mm ID, 56.30 mm ID x 198.00 mm , SAE 20R4 or SAE J20R4

Upper

1шт.

8

225109A6

RADIATOR HOSE,32.03 mm ID x 250.00 mm, SAE J20R4, Class DI OR SAE J20R4, Class E

Lower

1шт.

9

378479A1

SUPPORT

Left Hand

1шт.

9

378480A1

SUPPORT

Right Hand

1шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

4шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

4шт.

13

217-92

COCK

1/4

1шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

15

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

2шт.

16

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

17

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

4шт.

18

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

19

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

20

231504A1

SEAL

100 mm

2шт.

21

235898A1

SEAL

100 x 55 mm

2шт.

22

245392A5

LARGE PLATE

PLATE, LARGE

1шт.

23

252823A3

SEAL

4WD

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

3шт.

26

246461A2

DRIVE ASSY.

1шт.

27

250839A1

ADAPTER

1шт.
