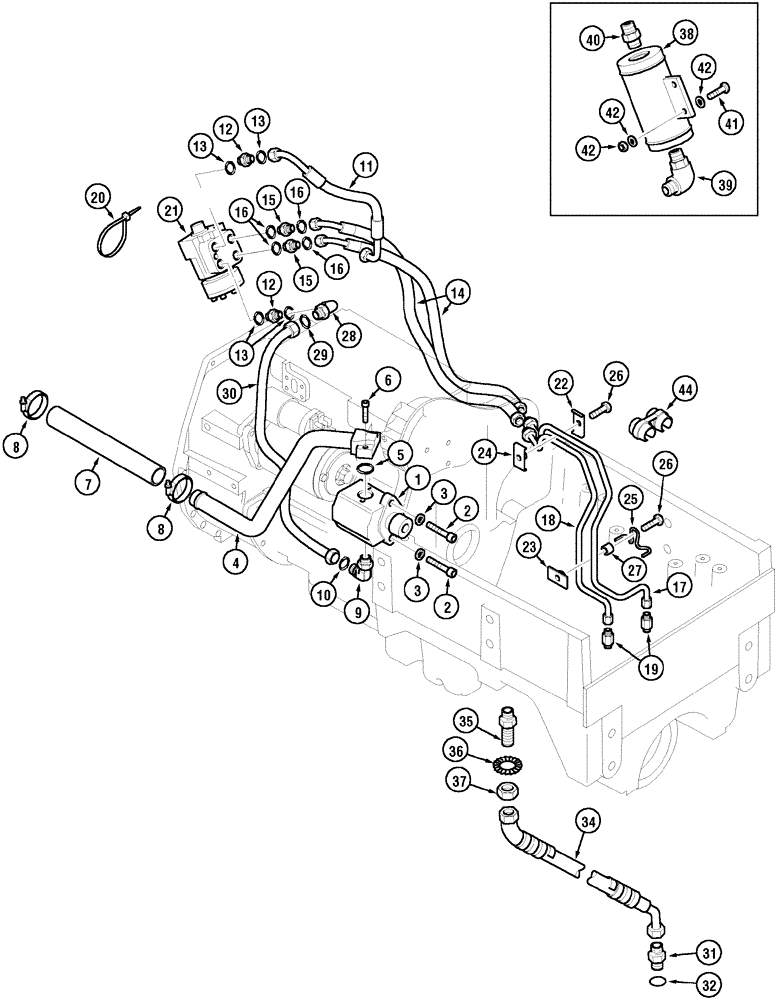

Запчасти Case IH CX50 (05-05) - STEERING PIPES (05) - STEERING

1

248056A2

PUMP, HYDRAULIC

1шт.

2

461-33844

HEX SOC SCREW,3/8"-16 x 2 3/4"

3/8 x 2-3/4

2шт.

3

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

2шт.

4

277417A2

PIPE

1шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

6

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

2шт.

7

257043A3

HYDRAULIC HOSE

1шт.

8

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

247039A1

HOSE,12.70 mm ID x 650.00 mm, SAE 100R1

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

302211A1

HOSE

2шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

302214A1

PIPE,0.375" OD, 704, 492 mm Length

4WD, Left Hand

1шт.

18

302213A1

PIPE,0.375" OD, 462, 683 mm Length

4WD, Right Hand

1шт.

17

302216A1

HYD TUBE,0.375" OD, 789, 417 mm Length

2WD, Left Hand

1шт.

18

302215A1

HYD TUBE,0.375" OD, 661, 387 mm Length

2WD, Right Hand

1шт.

19

99713C1

FITTING

4WD

2шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Row Crop

2шт.

20

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in

2шт.

21

360234A1

STEERING VALVE

Rexroth

1шт.

21

360234A1R

REMAN-HYD PUMP

1шт.

21

360234A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

319548A1

SEAL KIT

1шт.

22

297002A1

SUPPORT

2шт.

23

297020A1

SUPPORT

1шт.

24

297007A1

CLAMP

2шт.

25

315626A2

CLIP,ELECTRICAL

1шт.

26

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

3шт.

27

316407A1

SPACER

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

242240A4

HOSE,12.70 mm ID x 750.00 mm, SAE 100R1

1шт.

31

83357C1

FITTING

2шт.

34

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

483 mm (19 in)

2шт.

35

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl x blkhd fl

2шт.

36

93-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

37

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

38

338994A1

CHAMBER

1шт.

39

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

40

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

41

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

43

829-1308

NUT,M8, Cl 10

2шт.

44

359421A1

CLAMP

14 in, If So Equipped

2шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
