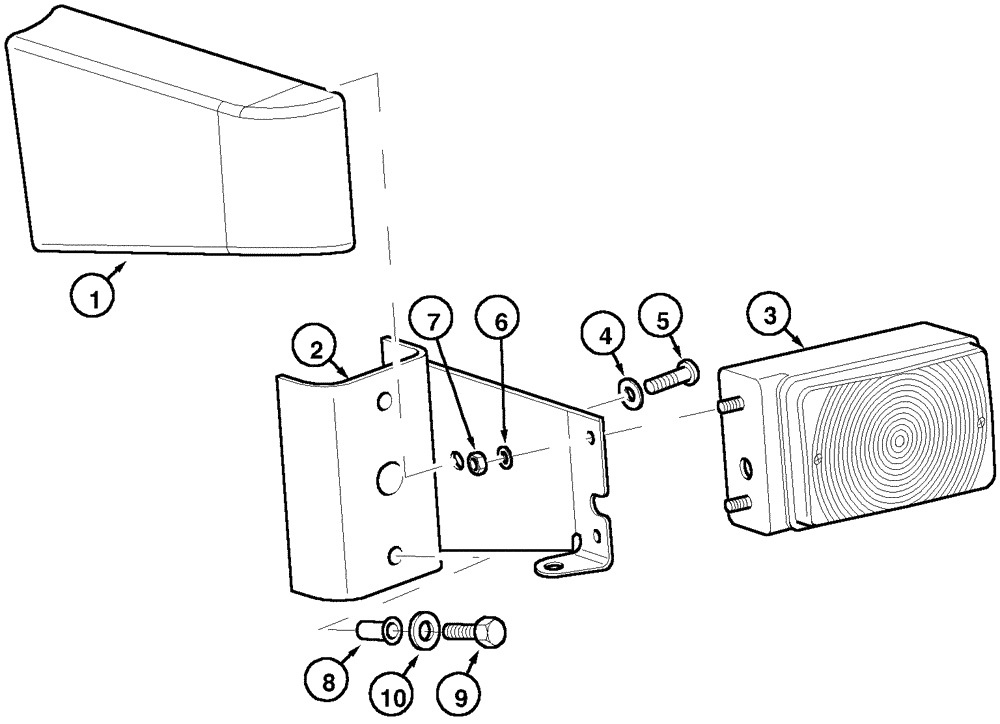

Запчасти Case IH CX50 (04-18) - LAMPS REAR (04) - ELECTRICAL SYSTEMS

LP Cab

1шт.

N.A. Only

1шт.

1

373609A1

COVER

Left

1шт.

1

373610A1

COVER

Right

1шт.

2

373852A1

SUPPORT

Left

1шт.

2

373853A1

SUPPORT

Right

1шт.

3

373615A1

LIGHT

2шт.

4

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

2шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

2шт.

6

892-11005

LOCK WASHER,M5

4шт.

7

824-1405

NUT,M5, Cl 5

4шт.

8

F35448

RIVET,8mm OD x 18mm L

8 mm

4шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
