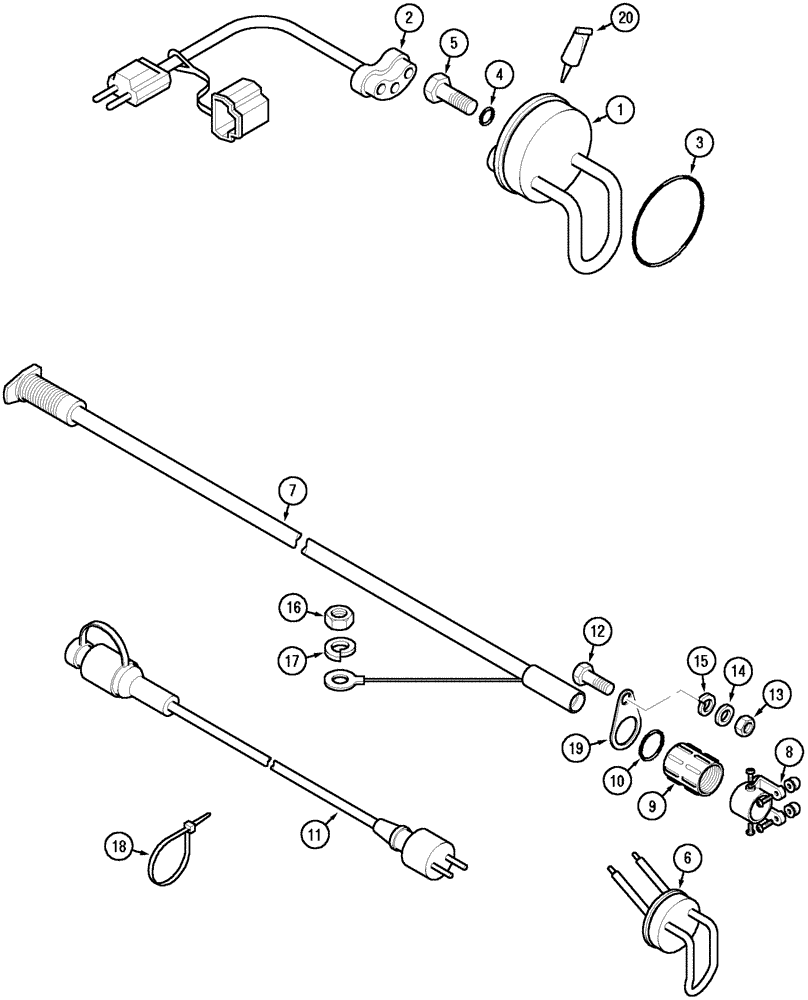

Запчасти Case IH CX50 (02-30) - ENGINE HEATER KITS (02) - ENGINE

120V

1шт.

1

325653A1

UNIT HEATER

120 V

1шт.

2

324896A1

CABLE

120 V

1шт.

3

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

4

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

9/16 ID x 1/16

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt

1шт.

230V

1шт.

6

313124A1

GLOW PLUG

230V

1шт.

313126A2

CABLE

230V, Includes 7 - 11

1шт.

7

314722A1

HARNESS

1шт.

8

NSS

NOT SOLD SEPARAT

Mounting Parts

1шт.

9

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

314723A1

CABLE

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

892-11008

LOCK WASHER,8mm ID

1шт.

16

825-1405

NUT,M5, Cl 8

1шт.

17

893-16005

LOCK WASHER,Int Tooth, M5

2шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

19

322377A1

SUPPORT

1шт.

20

345-603

SEALANT

575

1шт.
