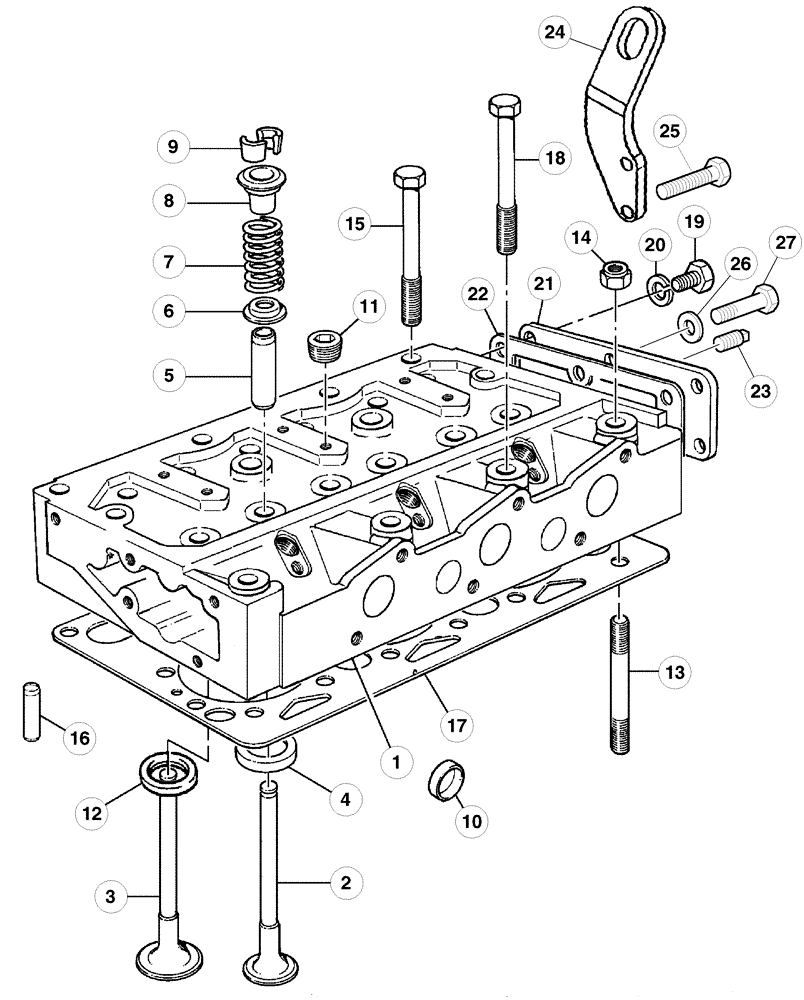

Запчасти Case IH CX50 (02-28) - CYLINDER HEAD (02) - ENGINE

295881A1

HEAD (CYLINDER)

CX50, Consists Of 1 - 11

1шт.

345402A1

HEAD (CYLINDER)

CX60, Consists Of 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

296160A1

VALVE,ENGINE,INLET,S

VALVE INTAKE

3шт.

3

296159A1

VALVE, ENG EXHAUST,

VALVE EXHAUST

3шт.

4

296195A1

BUSHING

3шт.

5

328340A1

GUIDE

6шт.

6

387881A1

SEAL

6шт.

7

296161A1

VALVE SPRING

6шт.

8

296200A1

CAP

6шт.

9

285222A1

BUCKET TOOTH KEY

12шт.

10

296084A1

PLUG

2шт.

11

295821A1

PLUG

1шт.

12

296196A1

BUSHING

3шт.

13

295818A1

STUD

2шт.

14

217977A1

NUT

M12

2шт.

15

296176A1

SCREW

8шт.

16

295825A1

DOWEL

2шт.

17

296217A1

GASKET

1шт.

18

296177A1

SCREW

2шт.

19

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

20

Washer

5шт.

21

296230A1

COVER

1шт.

22

295839A1

GASKET

1шт.

23

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

24

295836A1

LARGE PLATE

PLATE, LARGE

2шт.

25

217919A1

SCREW,Hex Flg, M10 x 25mm

4шт.

26

296085A1

SPACER

1шт.

27

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.
