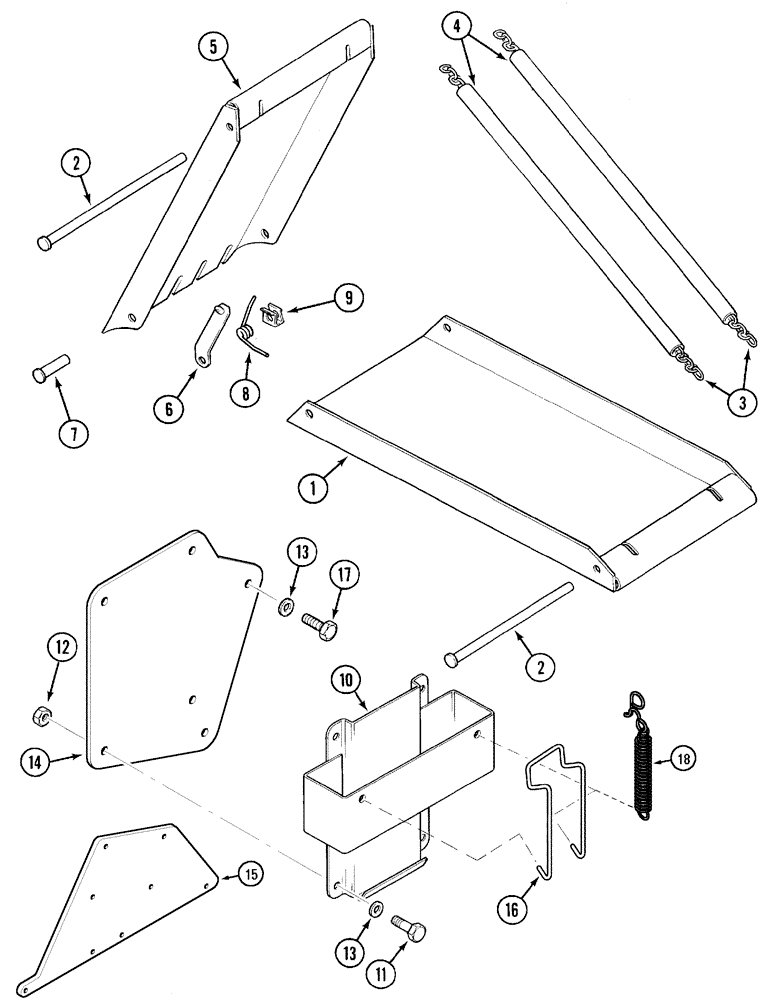

Запчасти Case IH CX50 (09-76) - WHEEL CHOCK (09) - CHASSIS/ATTACHMENTS

3216764R92

WEDGE

Consists Of 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

Wedge, Lower, Order 3216764R92

2шт.

2

3216771R1

PIN

2шт.

3

3216772R1

CHAIN (AG)

2шт.

4

3216773R1

HOSE

2шт.

5

NSS

NOT SOLD SEPARAT

Wedge, Upper, Order 3216764R92

2шт.

6

3216768R91

SPRING LOCK

1шт.

7

934656R1

DOWEL,M10 x 32

11 x 32 mm

2шт.

8

3216767R2

SPRING

2шт.

9

3225547R1

LOCK

2шт.

10

1970981C2

SUPPORT

2шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

292698A1

LARGE PLATE

PLATE, LARGE

1шт.

15

310791A2

LARGE PLATE

PLATE, LARGE

1шт.

16

3399158R1

ANCHOR

1шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

18

3216778R91

SPRING

If So Equipped

1шт.
