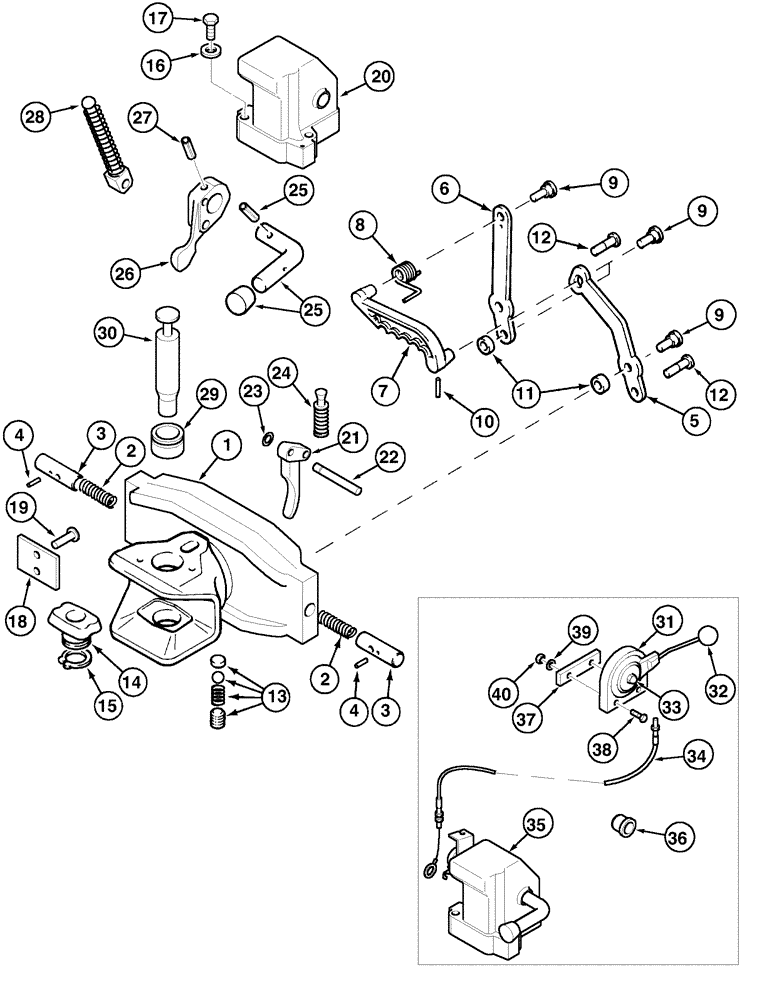

Запчасти Case IH CX50 (09-71) - TRAILER HITCH WITH AUTOMATIC CLEVIS (09) - CHASSIS/ATTACHMENTS

If So Equipped

1шт.

Europe Only

1шт.

368861A1

TRAILER HITCH

Consists Of 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

Support Assy

1шт.

2

141013A1

SPRING

2шт.

3

141014A1

PIN

2шт.

4

738-1516

LOCK PIN,M5 x 16, Slotted

2шт.

141015A1

HANDLE

Consists Of 5 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

Bar

1шт.

6

NSS

NOT SOLD SEPARAT

Bar

1шт.

7

NSS

NOT SOLD SEPARAT

Handle

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Pin

4шт.

10

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

11

NSS

NOT SOLD SEPARAT

Spacer

2шт.

12

NSS

NOT SOLD SEPARAT

Pin

2шт.

13

177336A1

BRAKE ASSY.

1шт.

14

310109A1

BUSHING,17mm ID x 85mm OD x 44mm L

32 mm

1шт.

15

800-5140

SNAP RING,M40, Ext, Hvy

(2.5mm Thk)

1шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

17

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

18

NSS

NOT SOLD SEPARAT

Decal

1шт.

19

906028R1

GROOVED PIN

2шт.

310187A2

LATCH ASSY.

Consists Of 20 - 30

1шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

310130A1

LEVER

Includes 27,28

1шт.

22

310135A1

SPLIT PIN/SAFETY PIN

1шт.

23

800-416

CIRCLIP,M6, Ext

1шт.

24

310139A1

PIN

1шт.

25

310147A1

HANDLE

1шт.

26

310175A1

LEVER

Includes 32

1шт.

27

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

28

310181A1

CLEVIS PIN

1шт.

29

368545A1

BUSHING,32mm ID x 48mm OD x 30.5mm L

1шт.

30

310185A1

HITCH PIN,32mm OD x 143mm L

32 mm

1шт.

371439A1

LEVER ASSY.

Consists Of 31 - 34

1шт.

31

NSS

NOT SOLD SEPARAT

Lever Assy

1шт.

32

3404892R1

BALL KNOB

1шт.

33

3221725R1

CAP

6 mm

1шт.

34

334056A1

CABLE

1шт.

35

334059A1

LEVER ASSY.

1шт.

36

372628A1

GROMMET

1шт.

37

334053A1

LARGE PLATE

PLATE, LARGE

2шт.

38

540-713

SCREW,Cross Pan Hd, M6 x 35

Cl 4.8

2шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

40

832-10406

NUT,M6 x 1, Cl 8

2шт.
