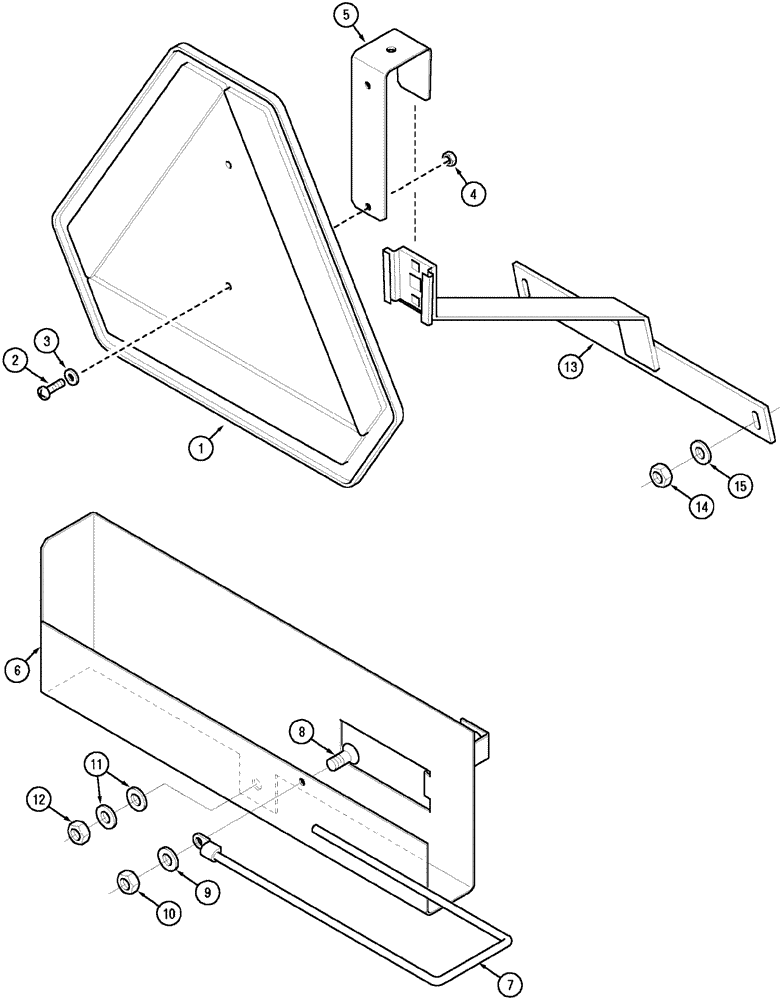

Запчасти Case IH CX50 (09-43) - WARNING TRIANGLE - SLOW MOVING VEHICLE (09) - CHASSIS/ATTACHMENTS

Scandinavian

1шт.

275106A2

TRAFFIC SIGN

Consists Of 1 - 5

1шт.

1

133273A1

TRAFFIC SIGN

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

275105A2

SUPPORT

N.A. Only

1шт.

275104A3

TRAFFIC SIGN

Consists Of 1 - 5

1шт.

1

202013C2

TRAFFIC SIGN

1шт.

2

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

275105A2

SUPPORT

Storage

1шт.

278150A2

SUPPORT

Consists Of 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

Support

1шт.

7

278155A3

STRAP

1шт.

7

307766A1

STRAP

LP Cab

1шт.

8

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

Mounting

1шт.

For Scandinavia And N.A. Only

1шт.

13

259947A2

SUPPORT

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
