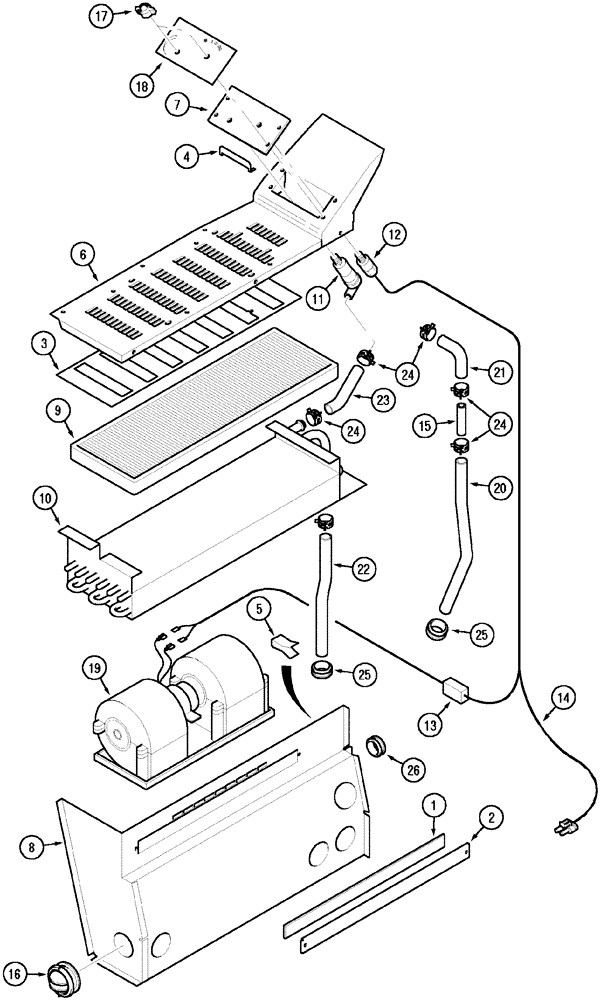

Запчасти Case IH CX50 (09-39) - HEATER ASSEMBLY LP CAB (09) - CHASSIS/ATTACHMENTS

232265A5

HEATER ASSY.

Consists Of 1 - 26

1шт.

1

304480A1

GASKET

1шт.

2

304479A1

FILTER COVER

1шт.

3

334757A1

LARGE PLATE

PLATE, LARGE

1шт.

3

304482A1

LARGE PLATE

PLATE, LARGE , If So Equipped

1шт.

4

304478A1

HANDLE

1шт.

5

304583A1

CLIP

1шт.

6

334756A1

SIEVE

1шт.

6

246878A2

SIEVE

If So Equipped

1шт.

7

246879A1

LARGE PLATE

PLATE, LARGE

1шт.

8

246880A3

HOUSING

1шт.

9

334755A1

CAB FILTER

1шт.

9

246882A2

AIR CLEANER

If So Equipped

1шт.

10

246883A2

RADIATOR

1шт.

11

247260A1

VALVE

1шт.

12

247262A1

SWITCH

1шт.

13

247264A1

RESISTOR

1шт.

14

247265A1

HARNESS

1шт.

15

247287A1

PIPE,0.62" OD, 4.5" Length

1шт.

16

247291A2

VENT

5шт.

17

247293A1

BUTTON

2шт.

18

247295A1

DECAL

1шт.

19

178454A2

BLOWER ASSY.

1шт.

178454A2R

REMAN-BLOWER

CX50, CX60 BOTH (1/98-)

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

20

1974655C1

HEATER HOSE,15.5mm ID x 2642mm L

Cut From 9 x 97252CX

1шт.

20

181071A1

LARGE HOSE,15.50 mm ID x 3130.00 mm

HOSE,LARGE Cut from 11 x 97252CX

1шт.

21

181072A1

HOSE,15.50 mm ID

1шт.

22

1530636C1

HEATER HOSE

Cut From 7 x 97252CX

1шт.

22

1954494C1

HEATER HOSE,15.50 mm ID x 4267.00 mm

Cut from 14 x 97252CX

1шт.

23

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut From 97252CX

1шт.

24

1954736C1

HOSE CLAMP,#24

6шт.

25

248-1123

GROMMET,1" ID x 1 3/4" x .062"

2шт.

26

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.
