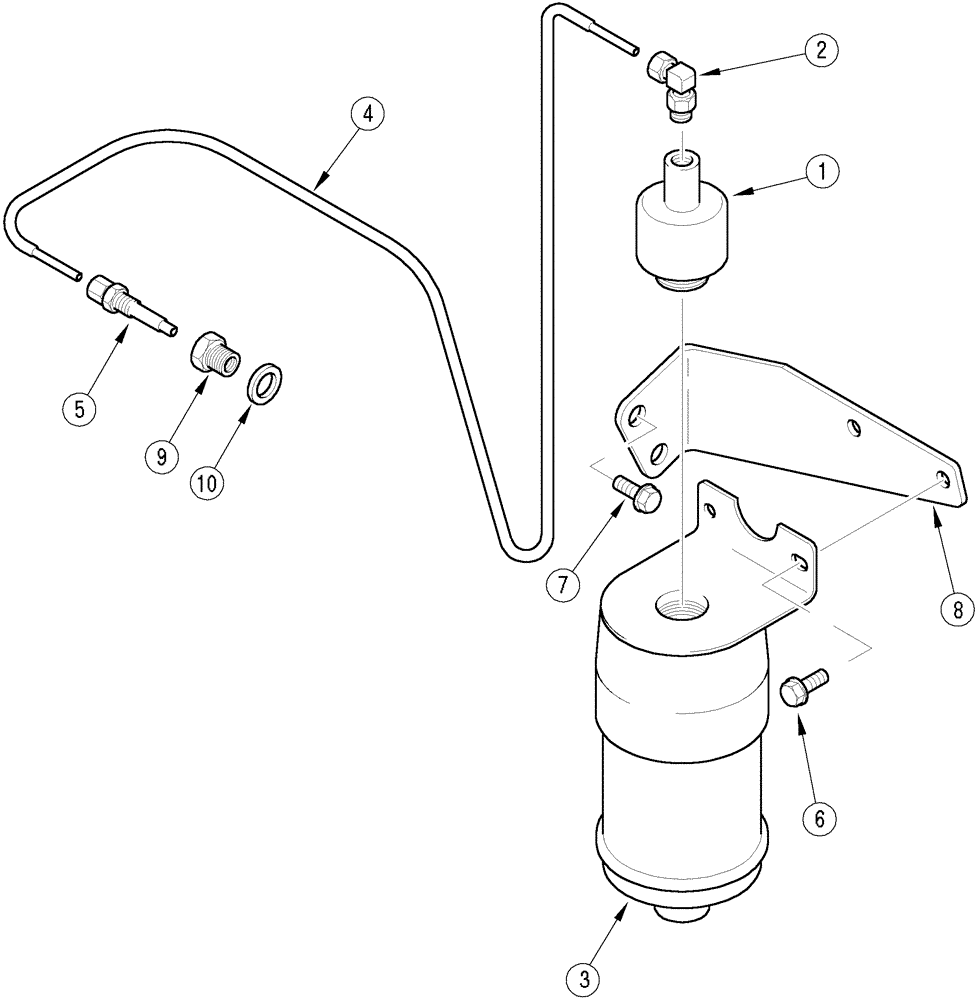

Запчасти Case IH CX50 (02-12) - ETHER STARTING (02) - ENGINE

185552A2

SOLENOID

12 V, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

2

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

3

190752A1

HOUSING

Ether Starting

1шт.

4

303008A1

TUBE,0.234" ID, 800 mm Length

800 mm

1шт.

5

A171946

NOZZLE CAP

1шт.

6

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

2шт.

7

844-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 8.8

M12 x 80: 8,8

2шт.

8

310226A2

SUPPORT

1шт.

9

3116081R1

JET

Serial No. - JJE1005380

1шт.

9

322177A1

JET

Serial No. JJE1005381 -

1шт.

10

307762A1

SEALING RING

1шт.
