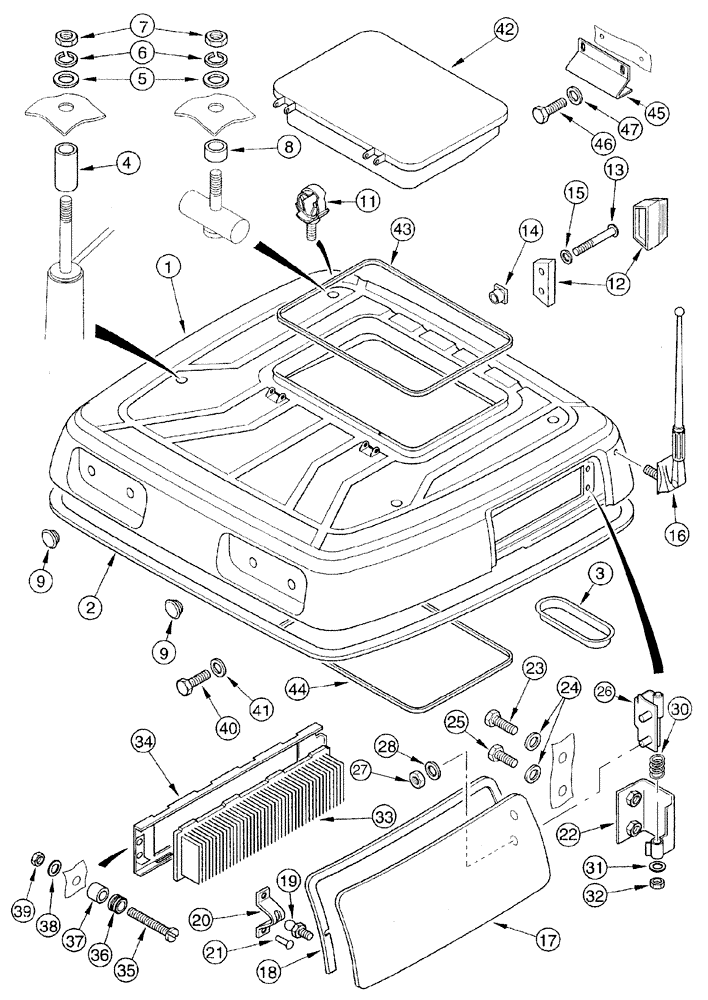

Запчасти Case IH CX50 (09-25) - ROOF WITH HATCH (09) - CHASSIS/ATTACHMENTS

Europe Only

1шт.

1

225656A2

ROOF

1шт.

2

229602A3

RUBBER SEAL,25mm W x 5334mm L x 25mm Thk

5234 mm

1шт.

3

236557A1

PLUG

4шт.

4

358071A1

SPACER

2шт.

5

221429A2

SPACER

4шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

4шт.

6

363640A1

WASHER

10,5 x 36 x 2 mm, Plastic

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

358072A1

SPACER

2шт.

8

223412A3

SPACER

2шт.

9

353-425

PLUG,0.437 Hole OD

7/16 in

6шт.

10

353-426

PLUG,1" Hole, Nylon

4шт.

11

233106A1

CLIP

8шт.

12

248700A1

LIGHT

See Page(s) 4-53

2шт.

13

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

4шт.

14

228004A1

NUT

4шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

16

197745A1

ANTENNA

410 mm, See Page(s) 4-5

1шт.

17

225657A3

COVER ASSY

Includes 18

1шт.

18

193053A2

SEALING STRIP,9.5mm W x 965mm L x 3mm Thk

1шт.

19

240699A2

BALL JOINT

1шт.

20

1961435C1

LATCH

1шт.

21

230206A2

RIVET

2шт.

22

228569A2

HINGE

1шт.

23

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

24

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

25

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

26

245367A2

HINGE

1шт.

27

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

28

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

30

228573A2

SPRING

1шт.

31

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

32

832-10406

NUT,M6 x 1, Cl 8

1шт.

33

248124A1

AIR FILTER

1шт.

34

248881A1

SUPPORT

1шт.

35

840-1425

SCREW,Pan, M4 x 25mm, Cl 4.8

4.8

1шт.

36

228567A1

SUPPORT

1шт.

37

229599A2

SPACER

1шт.

38

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

1шт.

39

824-1404

NUT,M4, Cl 5

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

41

892-11006

LOCK WASHER,M6

2шт.

42

231442A2

HATCH

See Page(s) 9-71

1шт.

43

RK303878

GASKET

1шт.

44

220414A2

RUBBER SEAL

1шт.

45

231703A1

PLATE

1шт.

46

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

2шт.

47

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
