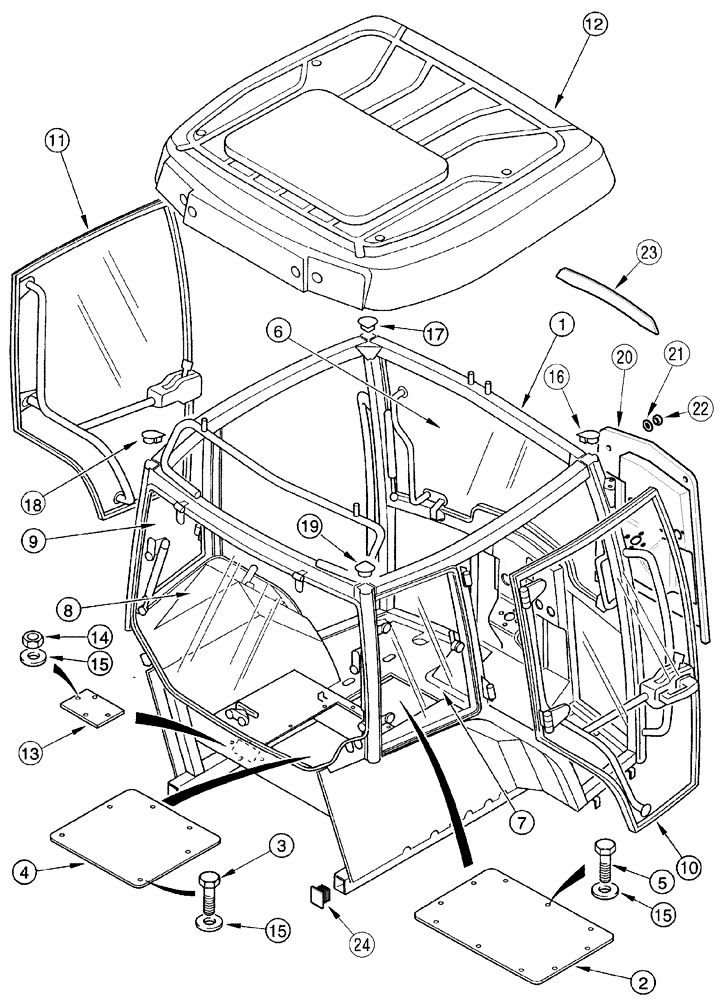

Запчасти Case IH CX50 (09-15) - CAB (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

Frame Assy

1шт.

2

242924A2

PANEL ASSY.

1шт.

2

322182A2

PANEL

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

10шт.

4

177602A3

FLAP

1шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

6

REF

INSTRUCTION

Windshield, See Page(s) 9-53

1шт.

7

REF

INSTRUCTION

Window Assy, Right, See Page(s) 9-53

1шт.

8

REF

INSTRUCTION

Window Assy, Rear, See Page(s) 9-55

1шт.

9

REF

INSTRUCTION

Window Assy, Left, See Page(s) 9-53

1шт.

10

REF

INSTRUCTION

Door Assy, Right, See Page(s) 9-49

1шт.

11

REF

INSTRUCTION

Door Assy, Left, See Page(s) 9-51

1шт.

12

REF

INSTRUCTION

Roof Assy, With Hatch, See Page(s) 9-59

1шт.

12

REF

INSTRUCTION

Roof Assy, Without Hatch, See Page(s) 9-57

1шт.

13

279411A2

LARGE PLATE

PLATE, LARGE

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

16

233413A1

GROMMET

1шт.

17

233414A1

GROMMET

1шт.

18

233415A1

GROMMET

1шт.

19

233416A1

GROMMET

1шт.

20

258683A4

PADDING

1шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

23

305552A1

PANEL

1шт.

24

321586A1

PLUG

2шт.

225931A2

SUNSHADE

Not Illustrated

1шт.

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

3 x 25 mm, Not Illustrated

2шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
