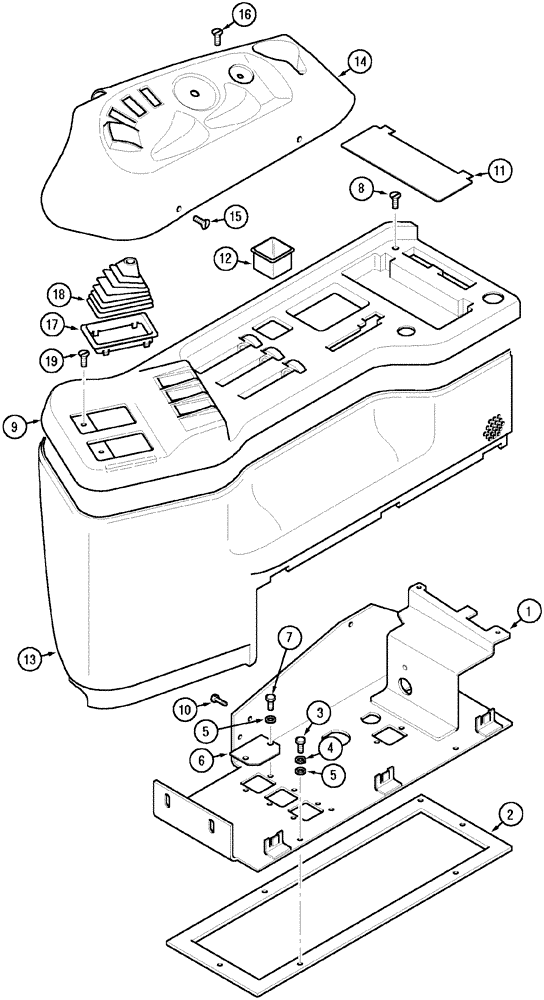

Запчасти Case IH CX50 (09-10) - CONTROL CONSOLE, RIGHT (09) - CHASSIS/ATTACHMENTS

1

275742A7

PLATE ASSY.

1шт.

2

258640A1

GASKET

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

4

892-11006

LOCK WASHER,M6

8шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

1500182C2

PLATE

1шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

8

540-711

SCREW,Cross Pan Hd, M6 x 30

M6 x 30; 4,8

2шт.

9

254955A4

COVER

Platform

1шт.

9

278544A4

COVER

Cab

1шт.

10

Screw

2шт.

11

283131A2

TRAP DOOR

Platform

1шт.

11

296704A2

TRAP DOOR

Cab

1шт.

12

248395A1

ASH TRAY

1шт.

13

254957A1

GUARD

Platform

1шт.

13

304927A1

GUARD

Cab

1шт.

14

292193A1

COVER

Platform

1шт.

14

294739A3

COVER

Cab

1шт.

14

291033A1

COVER

Rops Canopy

1шт.

15

540-704

SCREW,Cross Pan Hd, M6 x 16

2шт.

16

540-702

SCREW,Cross Pan Hd, M6 x 12

M6 x 12; 4,8, Platform

1шт.

17

241536A1

SUPPORT

2шт.

18

1533271C1

BOOT

2шт.

19

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

2шт.

321671A1

PLUG

Not Illustrated

1шт.

321669A1

PLUG

Not Illustrated

1шт.
