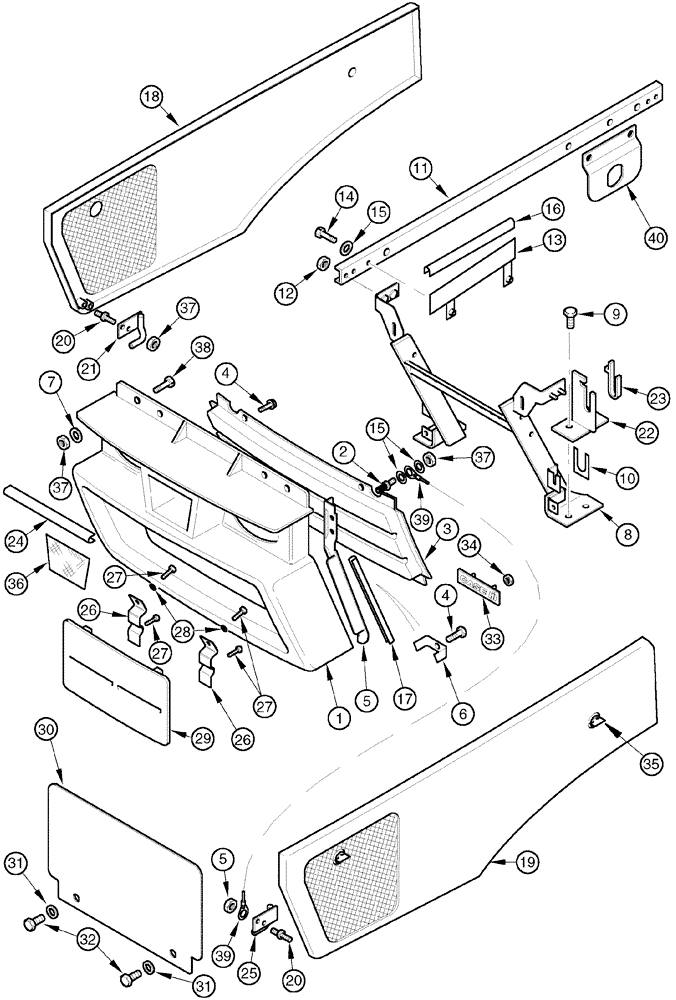

Запчасти Case IH CX50 (09-07) - FRONT GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

303151A2

GRILLE

Consists Of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

1537389C1

STUD

4шт.

3

303155A1

SIEVE

1шт.

4

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

14шт.

5

303153A1

FLANGE

Left

1шт.

5

303154A1

FLANGE

Right, Not Illustrated

1шт.

6

303156A1

SUPPORT

8шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

8

248500A3

SUPPORT

1шт.

9

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

10

99854C2

SHIM

1шт.

11

300830A3

GUIDE

2шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

13

259611A1

SUPPORT

Right

1шт.

13

259613A1

SUPPORT

Left

1шт.

14

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

16

259524A1

SEAL

2шт.

17

275554A2

SEAL

370 mm

2шт.

18

300136A2

PANEL, SIDE

Right, Includes 20

1шт.

19

300137A2

PANEL, SIDE

Left, Includes 20

1шт.

20

1537389C1

STUD

2шт.

21

249929A1

SUPPORT

Right

1шт.

22

249824A1

SUPPORT

2шт.

23

235184A1

RUBBER INSULATOR

2шт.

24

252821A2

SEAL

1шт.

25

249930A1

SUPPORT

Left

1шт.

26

140666A1

SUPPORT

2шт.

27

905736R1

SELF-TAP SCREW,Hex, M4.8 x 1.8 x 16mm

M4,8 x 16

4шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

29

T103383

SUPPORT

1шт.

30

281454A1

LARGE PLATE

PLATE, LARGE , With Front Hitch

1шт.

31

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

33

220980A1

EMBLEM CASE/IH

1шт.

34

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

35

279892A1

BUTTON

4шт.

36

300019A4

LENS

1шт.

37

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

38

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

39

1333373C1

ROPE

2шт.

40

314471A1

SUPPORT

1шт.
