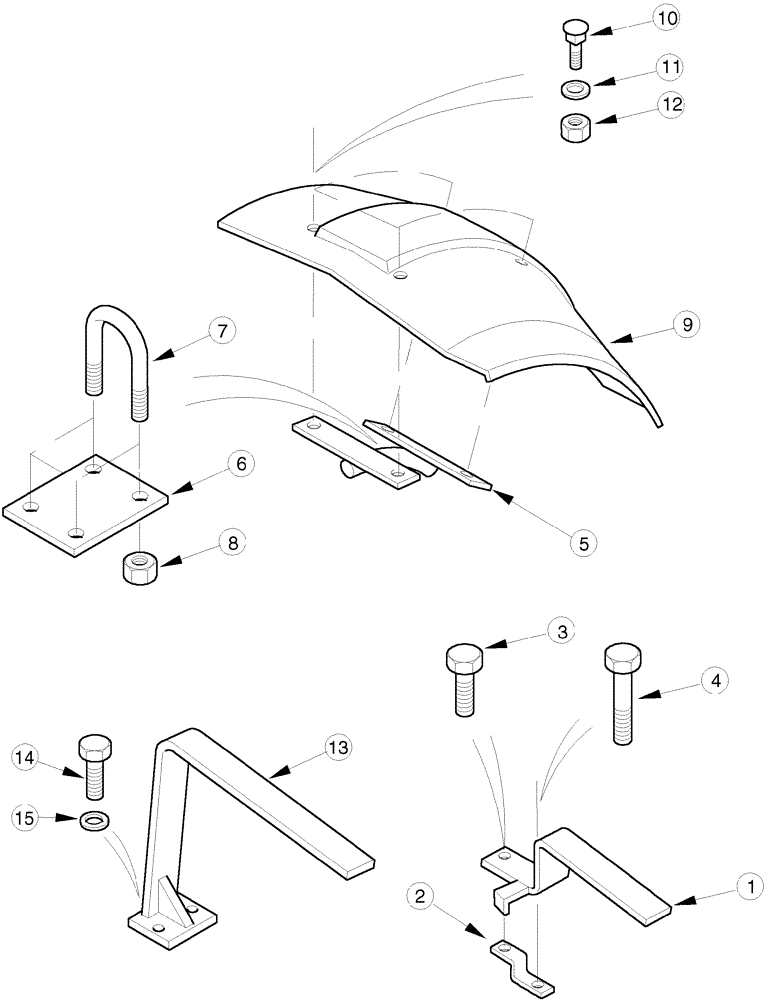

Запчасти Case IH CX50 (09-06) - FRONT SPLASH SHIELDS (09) - CHASSIS/ATTACHMENTS

2WD

1шт.

Row Crop A

1шт.

1b

175556A1

SUPPORT

Standard, Left

1шт.

1b

175557A1

SUPPORT

Standard, Right

1шт.

1b

178372A1

SUPPORT

Low Spindle, Left

1шт.

1b

178373A1

SUPPORT

Low Spindle, Right

1шт.

1b

178375A1

SUPPORT

High Spindle, Left

1шт.

1b

178376A1

SUPPORT

High Spindle, Right

1шт.

2b

175558A1

LARGE PLATE

PLATE, LARGE

2шт.

3b

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

M10 x 65

2шт.

4b

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

5

175559A1

SUPPORT

2шт.

6

175560A1

LARGE PLATE

PLATE, LARGE

2шт.

7

175561A3

U-BOLT,M8 x 1.25 x 32mm W x 50mm L

BOLT "U"

4шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

9

175562A2

SPLASH SHIELD

310 mm

2шт.

9

175563A2

FENDER ASSY.

215 mm

2шт.

10

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

8шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

13

175565A1

SUPPORT

Standard, Left

1шт.

13

175566A1

SUPPORT

Standard, Right

1шт.

13

178378A1

SUPPORT

High Spindle, Left

1шт.

13

178379A1

SUPPORT

High Spindle, Right

1шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

15

892-11010

LOCK WASHER,M10

4шт.
