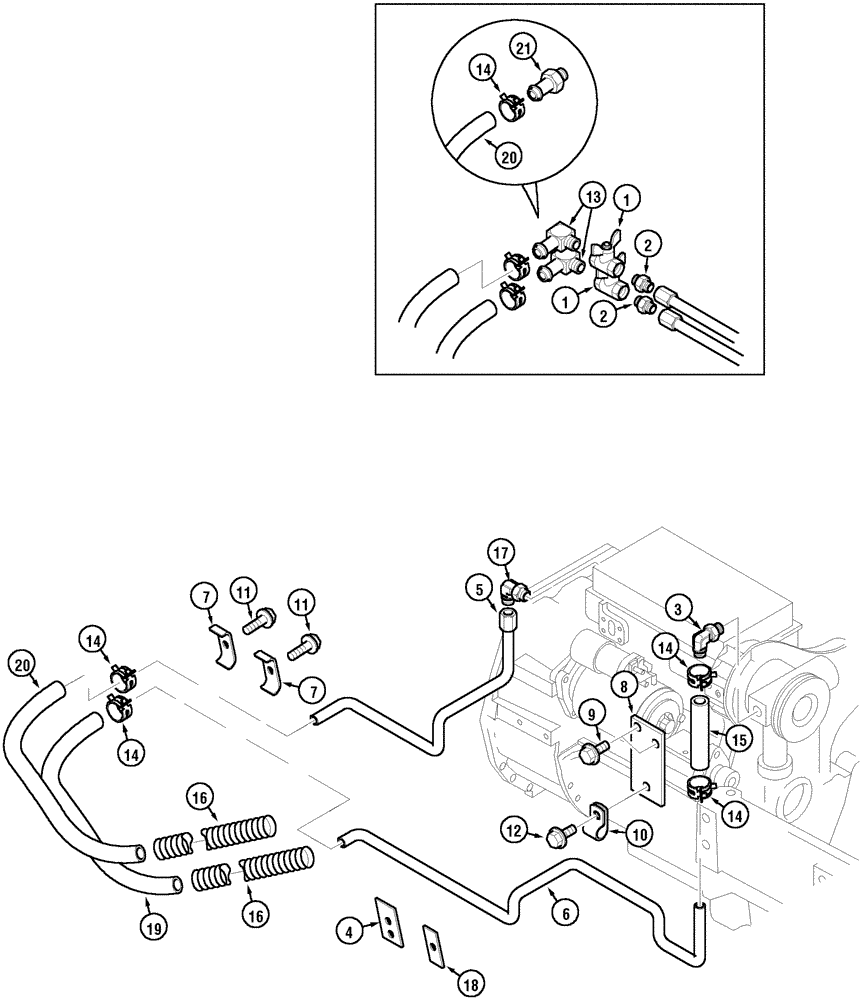

Запчасти Case IH CX50 (02-06) - HEATER HOSES (02) - ENGINE

1

T102597

COCK

2шт.

2

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

2шт.

3

3125512R1

ELBOW

1шт.

4

300249A1

SUPPORT

1шт.

5

356759A2

PIPE

Standard

1шт.

5

356761A1

PIPE

LP Cab

1шт.

6

356760A1

PIPE

Standard

1шт.

6

356762A1

PIPE

LP Cab

1шт.

7

3230039R1

CLAMP

1шт.

8

259986A1

SUPPORT

1шт.

9

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

2шт.

10

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

11

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

12

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

13

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

2шт.

14

1954736C1

HOSE CLAMP,#24

4шт.

15

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut From 97252CX

1шт.

16

294170A1

SPRING

2шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

18

300251A1

LARGE PLATE

PLATE, LARGE , M6 x 30; 8,8

1шт.

19

181071A1

LARGE HOSE,15.50 mm ID x 3130.00 mm

HOSE,LARGE Supply, Cut from 11 x 97252CX

1шт.

20

1954494C1

HEATER HOSE,15.50 mm ID x 4267.00 mm

Return, Cut from 13 x 97252CX

1шт.

21

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

LP Cab

2шт.
